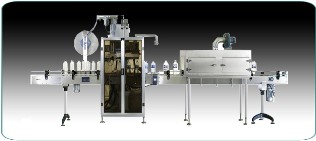

Automatic linear bottling machine for filling bottles, suitable for edible and detergent liquids.
Inox Bottling Machines
MPI
RPI
Line
Weight Filler
| Models | Filling Heads | Dosing Range | Capacity l/h | A | B | C | H |
| LINE 4 2 l | 4 | 50/2000 | 1000/1500 | 950 | 1500 | 4000 | 2100 |
| LINE 6 2 l | 6 | 50/2000 | 1600/2200 | 1250 | 1500 | 4500 | 2200 |
| LINE 8 2 l | 8 | 50/2000 | 2000/3000 | 1550 | 1500 | 5000 | 2200 |
| LINE 10 2 l | 10 | 50/2000 | 2500/3700 | 1850 | 1500 | 6000 | 2200 |
| LINE 4 5 l | 4 | 500/5000 | 1800/2300 | 1000 | 1600 | 4000 | 2200 |
| LINE 6 5 l | 6 | 500/5000 | 2300/3000 | 1500 | 1600 | 5000 | 2200 |
| LINE 8 5l | 8 | 500/5000 | 3600/4600 | 2000 | 1600 | 6000 | 2200 |
Technical Features
- Bottle infeed by conveyor belt
- Bottle stop by electro-pneumatic controlled gates
- Incoming bottle check device
- Pressure volumetric filling
- Stainless steel pneumatic liquid valves, with Teflon
- Height adjustable valves by gear motor
- Valves width positioning quick adjustment
- Machine stop safety device intervening in absence of bottle
- Bottle outfeed by conveyor belt, with outgoing bottle check
Structure
Stainless steel, polyethylene, Plexiglas, according to the chemical features of the product to fill.
Optional
Liquid dosers in Pirex glass or stainless steel, Teflon seals, bottling machine supply self-priming pump, liquid delivery nozzles on the bottom of the bottle with raise/descent speed adjustment and positioning of the liquid delivery nozzle. Bottleneck centring device.
Power
400/230/50 Hzcompressed air
