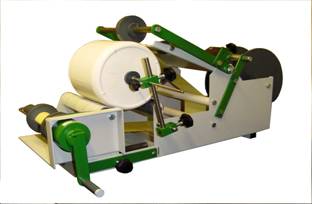

IMPALA Standard model:

Suitable for cylindrical products
Label size 210 mm
Diam: 35mm to 120mm

Machine Dimensions: Length: 850 mm Width: 500 mm Height: 400mm Mass: 32 Kg
Label Size: Height: Width 210 mm, Length: Max 250 mm
Roll Size: 230 mm Outer
Core: 45 or 75 mm
No electricity or compressed air required

Wrap Around Glue
Sleeve Labelling
Self Adhesive
Manual Labelling

• Die cut, butt cut, solid or transparent labels easily handled
• Change over within minutes - no tools required
• No expert knowledge required to set up and operate the machine - ideal for unskilled labour situations
• Label advance by operating a 100mm hand crank
• Peel blade fixed, never needs adjustment
• Backing paper is rolled up on a take up shaft fitted with a quick strip-off clamp
• Robust construction - made from heavy dull steel and finished in durable powder coating to give years of service - virtually no maintenance required
• Negligible maintenance required - keep clean
• Placing of partially or fully surrounding labels
• Machine fitted with overhead stabilizing roller arm for holding down very light containers

IMPALA Overhead Model: Suitable for cylindrical products
Label size 210 mm / Diam: 16mm to 220mm

• Die cut, butt cut, solid or transparent labels easily handled
• Change over within minutes - no tools required
• No expert knowledge required to set up and operate the machine - ideal for unskilled labour situations
• Label advance by operating a 100mm hand crank
• Front and back label placement possible
• Backing paper is rolled up on a take up shaft fitted with a quick strip-off clamp
• Robust construction - made from heavy dull steel and finished in durable powder coating to give years of service - virtually no maintenance required
• Negligible maintenance required—keep clean
• Placing of partially or fully surrounding labels
• Machine fitted with overhead stabilizing roller arm for holding down very light containers
• Very attractively priced
• No electricity or compressed air required
• No special spare parts required

Machine Dimensions: Length: 760 mmWidth: 410mmHeight: 280mmMass: 19 Kg
Label Size Height: Max 220mm Length: Max 375mm
Roll Size: 230mm Outer
Core: 45mm or 75mm
Cylindrical Packaging: Size From 35mm to 220mm diameter
Rate of labeling: Up to 1000 units per hour depending On size of label and placing conditions

OKAPI Vacuum
The OKAPI VACUUM machine is ideal for all those small and medium labeling runs
Label size 210 mm / Product size depends on shape / Very accurate placement

• The backing paper is rolled up automatically on a take up shaft.
• No expert knowledge is required to set up and operate the machine, ideal for unskilled labour conditions.
• Robust construction—made from heavy duty steel and finished in durable electroplated zinc finish to give years of reliable service.
• Change over in minutes and very easy—no tools required.
• Die cut, butt cut, solid or transparent labels easily handled.
• The OKAPI VACUUM performs a sophisticated labeling operation, yet it is of extremely simple design.

How the OKAPI VACUUM works
Self-adhesive labels on a roll, are applied onto irregular shaped items by means of a hand operated process. The label reel is mounted inside the machine body. The label web is passed over the edge of a peel blade where the label is separated from the backing paper. The label is dispensed onto a vacuum grid where it is accurately held in place by means of vacuum suction. The label is held with the adhesive side facing upwards. The object to be labeled is held manually in position, accurately guided by an adjustable indexing system. When in position, the object is pressed down and the self adhesive label sticks to it. The object is now labeled and is removed.

Machine Dimensions Length: 850 mm Width: 500 mm Height: 400mm Mass: 32 Kg
Rate of labeling: Depends entirely on shape
Label Size: Height: Width 210 mm / Length: Max 250 mm
Roll Size: 230 mm Outer
Core: 45 or 75 mm
