Automatic vertical form fill-and-seal packaging machines The Snack-Pack has proved extremely successful in the packaging of products such as potato crisps, extruded snacks, popcorns, pretzels and tortilla snacks. The machines are easy to use and require the minimum of maintenance.

Filling Systems

• Multi-head weigher
• Automatic weigh system
• Volumetric cup doser
• Bucket elevator

Dimensions
1065 mm wide x 1840 deep x 1700 mm high (floor to top of product tube)

Electrical data
V, 380 phase, 50 Hz

Compressed air
litre/min at 550 kPa

Mass
900 kg

Machine capacity
Up to 100 packs per minute (depending on bag length and product)

Pack size limits
Max. flat bag size: 260 mm wide x 350 mm long, min. flat bag size 70 mm wide x 80 mm long. Other bag sizes available on request.

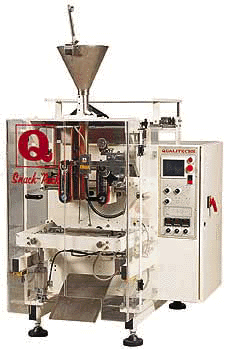

The Snack-pack packaging machine
Features full touch screen programmable logic control (PLC) of all machine functions - bag speed, bag length, print registration, overprinter, product call, no product - no bag, vertical and horizontal seal tempertures and dwell times (dual heating systems available), average bags per minute, and filled bags counter. The PLC automatically monitors jaw obstructions, film breakage, print registration, overprinter tape run-out, packaging material run-out, and safety guard circuits. The packaging material reel and support frame move as one complete unit, preventing the waste of valuable packaging material. The horizontal and vertical seal systems run on hardened shafts and linear ball bushes for a long and trouble-free life. The machines are low-profile and so reduce gantry height to a minimum when linked to filling systems. They have a low product-drop from the top of the bag former to the horizontal jaws, making them ideal for high speed running and fragile products. The machines are available in single or twin versions to give maximum use of the production area and the output speeds of modern multi-head weighing systems. Packaging speeds of up to 100 packs per minute can be achieved, (single tube application) dependent on pack size, product to be packed, and packaging material.

Forming sets
Fully stainless steel "one" piece
Forming tubes for quick change overs and fast effective cleaning
Produced with half back cut-out allowing positive product transfer

Product Poker
Ensuring smooth and effective product transfer through inter-leading chutes - thus eleveating any bridging problems

Stripping action
Ensurung that the product is effectively transferred below the seal area.

Product catcher
Ensuring exact and precise product drop times thus avoiding "late" product within seal areas.

Optional extras
Pack off tables
Gas flushing
Date coding / printing
Euro-slot / hole punch
Strip pack facility
