AC-6B10-2B

Confectionery, bakery, biscuit, cookie, cereals, fruit seed, snack, chips, flake, nut, jelly, pet food, plastic part and
so on.. It works with different weight requirement and different shape products

1. Stagger Dump avoid big pieces stuck in transferring tube

2. Mulit Language Menu in one touch screen

3. All food contacted surface is made of Stainless Steel, all parts are enclosed to prevent product build-up.
Waterproof and dustproof construction

4. Backlight adjustmest

5. Speed adjustment of hopper movement by steppermotor,no air consumption

Weighing Range (per single dump) - 10~1000g ------ Drive Model - Step motor------ Max. Weighing - 3000g------ Number of preset - 99------Accuracy - ±0.1~1.5g------ Dimension(L*W*H) - 50x950x1129------ Max. speed - 70WPM------ Power requirement- 1.5kw/50HZ/220V------ Weighing hopper volume - 1.3litres------ Net/Gross Weight - 300/390KG------ Weighing construction - double layer without memory ------ Controller - 7 inch touch screen

New 14 head multihead weigher ( 14 Btch 256 )

Confectionery, bakery, biscuit, cookie, cereals, fruit seed, snack, chips, flake, nut, jelly, pet food, plastic part and
so on.. It works with different weight requirement and different shape products

1.Stagger Dump avoid big pieces stuck in transferring tube

2.Mulit Language Menu in one touch screen

3.All food contacted surface is made of Stainless Steel,all parts are enclosed to prevent product
build-up.Waterproof and dustproof construction

4.Backlight adjustmest

5.Speed adjustment of hopper movement by steppermotor,no air consumption

Weighing Range (per single dump) - 10~2000g ------ Drive Model - Step motor ------ Max. Weighing - 3000g ------ Number of preset - 99 ------ Accuracy - ±0.1~1.5g ------ Dimension(L*W*H) - 1680x1210x1140 ------ Max. speed - 130WPM ------ Power requirement - 2kw/50HZ/220V ------ Weighing hopper volume - 1.3litres ------ Net/Gross Weight - 350/430KG ------ Weighing construction - double layer without memory ------ Controller - 7 inch touch screen

AC-6B10-3B-07

Various Kinds of product in biggish cubage. The fruit vegetable such as potato, carrot,
tomato,corn,orion,orange,mango etc.And frozen food such as fish?meat?drumsticks etc

Weighing Range - 50g~30KG ------ Weighing Accuracy - ±4.0gram(2000g) ------ Max.DisplayingWeight - 30KG ------ Max Speed - 40WPM ------ Weghing hopper volume - 5.5liters ------ Mumber Presets - 99

AC-6B10D Multihead weigher Application:

Vegetable,nuts&fruit,grated cheese,bakery snack etc.Also long and bigger size material.

Features:

* Use the digital sensors to enhance speed, precision and anti-jamming capatiblity;
* Frame with IP65 protection;
* Statistical Data-Inspect on screen and via optional printer output;
* Optional language of operation. English ,Japanese,Chines,Italian ,German,Spanish,Russian etc.
* Options:Dimpled plate on all product contact surfaces, Overweight discharge equipment, Collection
hopper,Printer.

Weighing Range (per single dump) - 10~2000g ------ Drive Model - Step motor ------ Max. Weighing - 5000g ------ Number of preset - 99 ------ Accuracy - ±0.1~1.5g ------ Package size(L*W*H) - 1840×1190×1860mm ------ Max. speed - 70WPM ------ Power requirement - 2.0kw/10A/50HZ/220V ------ Weighing hopper volume - 5.0litres ------ Net/Gross Weight - 590/680KG ------ weighing construction - double layer without memory ------ Controller - 5.7Inch Color LC

AC-6B14D-3A-06

* Use the digital sensors to enhance speed, precision and anti-jamming capatiblity;
* Frame with IP65 protection;
* Statistical Data-Inspect on screen and via optional printer output;
* Optional language of operation. English ,Japanese,Chines,Italian ,German,Spanish,Russian etc.
* Options:Dimpled plate on all product contact surfaces, Overweight discharge equipment, Collection
hopper,Printer.

Weighing Range (per single dump) - 10~2000g ------ Drive Model - Step motor ------ Max. Weighing - 5000g
------ Number of preset - 99 ------ Accuracy - ±0.1~1.5g ------ Package size (L*W*H) - 1940×1940×2130mm ------ Max. speed - 90WPM ------ Power requirement - 2.0kw/10A/50HZ/220V - Weighing hopper volume - 5.0litres ------ Net/Gross Weight - 918/1038KG ------ Weighing construction - double layer without memory ------ Controller - 5.7Inch Color LCD

AC-6B3A10 Multihead weigher Application

Confectionery, bakery, biscuit, cookie, cereals, fruit seed, snack, chips, flake, nut, jelly, pet food, plastic part and
so on.. It works with different weight requirement and different shape products.

Special function

Different programme is referred to the product’s photo and its name, more friendly to the user. Exclusive
function to set each redial feeder's amplitude independently and indicate the weight of each hopper in the
screen Synchronized with PC, can download and upload the parameter settings and statistics, also can monitor
the running screen in the PC . Stagger dump delay facility to avoid large pieces stuck in the VFFS forming tube.

Weighing Range (per single dump) - 10~1500g ------ Drive Model-Step motor ------ Max. Weighing - 4000g - ------ Number of preset - 99 ------ Accuracy - ±0.1~1.5g ------ Dimension(L*W*H) - 1150x950x1049 ------ Max. speed - 80WPM ------ Power requirement - 1.5kw/9A/50HZ/220V ------ Weighing hopper volume - 2.5litres ------ Net/Gross Weight - 350/430KG ------ weighing construction - double layer without memory ------ Controller - 10.4 inch touch screen

AC-6B3A14 Multihead weigher Application:

Confectionery, bakery, biscuit, cookie, cereals, fruit seed, snack, chips, flake, nut, jelly, pet food, plastic part and
so on.. It works with different weight requirement and different shape products.

Special function:

Different programme is referred to the product’s photo and its name, more friendly to the user.
Exclusive function to set each redial feeder's amplitude independently and indicate the weight of each hopper in
the screen Synchronized with PC, can download and upload the parameter settings and statistics, also can
monitor the running screen in the PC . Stagger dump delay facility to avoid large pieces stuck in the VFFS
forming tube.

AC-10 Feeder Features:

*Power - 500W *Conveying Sped: 1m3/h
*Voltage - 220V
*Weight - 130Kg
*Size - 1080(L)×1350(W)×1080(H)
Loading: 143 sets/20’ 336 sets/40’GP 379sets/40’HQ

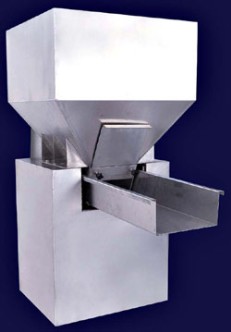

Feeder:
lnterface of the feeder is made of 304 stainless steel.Maximal delivery speed is 2 steres per hour.lt can carry
material from the material funnel to the conveyor and adjust the delivery speed with stepless adjustor.
Application:Snacks,nuts,rice,seeds,spice and other nonstick material.

AC-7 Checkweigher Features:

*Apply advanced digital signal processing and realize high speed and stable weighing.
*Special frame structure enables it to keep accuracy when working.
*With liquid crystal and tangibly screen,it is easy to operate.
*With strong data statistic function,it can memorize each data.
*Size(mm) G.W - 145Kg

Weigh Range - 10g-400g --- 401g-999g --- 1000g-9999g ---
Speed and accuracy ---- Max Speed:60bags/min - Accuracy:±0.5g ---- Max Speed:40bags/min - accuracy:±1g ---- Max Speed:20bags/min - Accuracy:±2g ------ Size(meter) - 1.05(L)× 0.7(W)× 1.26(H)
G.W(Kg) -160Kg ------ Voltage(V) 220V ------ Power(watt) 300W ------ Loading - 20 sets/20’ --- 50 sets/40’GP --- 56 sets/40’HQ

ACZ-A 4 Head Linear Weigher Features:

*Packing Speed::100g 50Packs/min.
*Accwracy:±1g.
*Max Weight:1000g
*Power Supply:1000W
*Voltage:220V
*Gross Weight(GW):271Kg
*Net Weight:220Kg
*Packing Size:1120(L)×1090(W)×935(W)

ACZ-B Small 4-Head Weigher:

*Packing Speed:: 75Packs/min.
*Accwracy:±0.5-1g.
*Max Weight:100g.
*Power Supply:1000W
*Voltage:220V
*Gross Weight(GW):180Kg
*Net Weight:150Kg
*Packing Size(mm):1095(L)×780(W)×895(H)

ACZ-D Big 2-Head Linear Weigher Features:

Application:Sugar?Salt?Seeds?Spices?Milk powder?Rice?Sesame??Small seasoning
granules?Powder etc.

* Use the digital sensors to enhance speed, precision and anti-jamming;
* Control by SCM system, used twin-vibration linear feeder, advanced technology and easy to operate?
*Frame with stainless steel and IP65 protection, easy to assemble and clean. High compatibility with other
packing machines.

Power:1000W Voltage:220V
G.W(kg):180Kg N.W(kg):150Kg
Packing Size(mm):1095(L)×780(W)×895(H)

Model - ACZ-D ------ Maximum Weight - 2500g ------ Accuracy - 2-5g ------ Speed - 25 Bag/min ------ Preliminary Program(set) - 10 ------ Body Size(mm) - 580mmX1325mmX1015mm

Auger filling Machine Features:
Application:Milk power?flour power?and any other powder.

*Design with IP65 protection;
*All parts are made of stainless steel, sanitary .
*Auger is easy to dismantle and clean.
*Automaticly correct unloading weight according to
the intellectualized adjusting function.
*High compatibility with other packing machies

Model - Auger Filling Machine ------ Maximum Weight - 10KG ------ MaxSpeed - 70 bag/min ------ Accuracy(g) - ±0.2-5g ------ Preliminary Program(set) - 20 ------ Body Size(mm) - 800mmX580mmX2080mm ------ N.W/G.W(kg) - 200/280

THERMAL TRANSFER CODER
