Operation

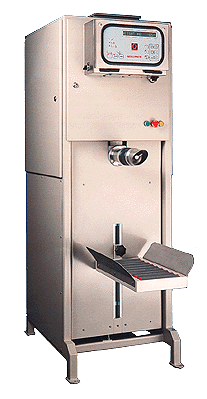

The fully automatic filling cycle begins with the bags valve being totally sealed off and the weight of the bag also tared off. The next stage fills the bag which is on a load cell, at a fast rate of feed through a pneumatically operated slide gate via an auger. When the weight reaches a preset amount (normally about 95% of the required total) the slide gate closes off to a preset slow rate of feed until the required weight is achieved, at which point it closes off completely.

When the auger has transferred all the product is stops and the valve seal is released automatically, ready for the bag to be removed.

Main features

• Extremely accurate and clean filling operation
• Latest micro-processor technology
• Operator friendly
• Batch sample facility
• 2 stage pneumatic feed control
• Stainless steel contact parts
• Access within 2 minutes to all contact parts for cleaning
• Safety switches fitted to access doors
• Very low maintenance required

Technical Specifications

Electrical
380 Volts A.C. 3 Phase and neutral. 50Hz. 10 Amp rated

Pneumatic
Approximately 10 litres clean dry air per minute @ 6 bars

Dust Extraction
750m3/Hour. Allow 100 mm water gauge at connection on machine

Load Cell
single point x 250 kg capacity

Auger Precision
made of stainless steel with centre core

Auger Drive
kW 3-Phase motor via synchronous drive belt

Stirrer Drive
kW 3-Phase motor via hollow shaft drive gearbox

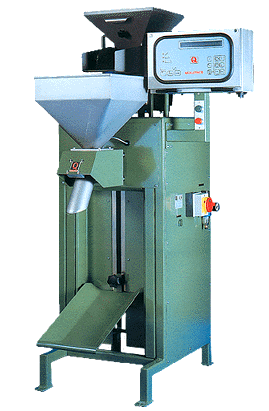

Valve Bag Filler
Main features

• Two-speed vibratory Feed
• Extremely accurate
• Heavy duty load cell
• Micro-processor controlled
• Digital display of weights
• Electronic damping
• Automatic tare function
• Designed for quick cleaning
• Operator friendly
• Dust proof controls
• Low maintenance

Optional extras

• Open top bag filling attachment
• Conveyors for filled bags
• Sealers for filled bags
• Stainless steel contact parts

Technical Specifications
Electrical
220V — 50Hz — 10 amps

Pneumatic
0.3 ltrs per min x 3 bars

Weight
133 Kg

Load Cell
single point x 250 Kg capacity
General information
Weighing Capacity
5 to 50 Kg

Accuracy
within 25 grams

Filling rate
up to 4 tons per hour

Bag Support
adjustable

Product Feed
vibrating feed tray
