Pack Machine EP-282S
PACKALL MACHINES

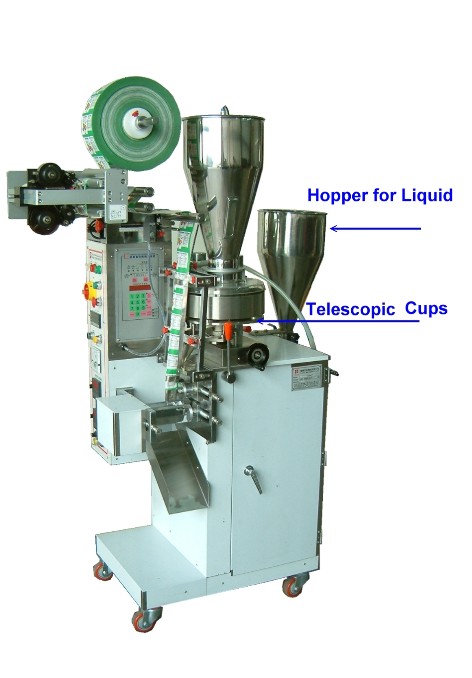

MODEL EP-282S
DRY-PASTE PRODUCTS FILLER
Applications :
Sugar, Salt , Honey, Salad Sauce, Shampoo or other similar productssimilar products.
3-Side type
4-Side type
Pillow type
| Model | EP-282S |
| Specifications | |
| Motor | 1/4HPx1pc |
| Heating Elements | 250Wx2pcs,300Wx2 |
| Power | 220V,Single Phase,50/60HZ |
| Packing Film | OPP+PE, CPP+.PE Aluminum Foil. Paper+PE and other Heat-Sealable Laminated Film. |
| Types of Pouches | 3-Side, 4-Side, or Pillow types |
| Packing Size | S Type: 20-80mm(Wide), 40-130(Long) M Type: 90-140mm(Wide), 130-200(Long) |
| Speed | About 30-80 Pouches per minute. |
| Machine Weight | S Type: N.W 345kgs. GW.400kgs M Type: N.W 420kgs. GW.485kgs |
| Machine Size | S Type: 20" x 22" x 60" M Type: 31" x 28" x 73" (L x W x |
| Optional components | |
| 1.COMPUTING SELF-DIAGNOTIC SYSTEM |
This system will automatically alarm, show and stop the machine. When the machine is out of order, will facilitate the maintenance and avoid failure of the products. The detail as follows: |
| A. No packaging film. | |
| B. No packing product. | |
| C. Heating Elements are damaged. | |
| D. Auto. Temperature Control: For example: If the sealing temperature is 80?, you can set up + - 2? for packaging. Once the temperature is out of this range, the machine will alarm and stop working. |
|
| E. Set Batch Number: You can also set up the quantities as you will need. When it reaches the quanities you have set up, the machine will alarm and stop running. |
|
| 2. THE AUTOMATIC BAG LENGTH ADJUSTER Easily to Change of the bag length without using any parts. And digitally show the length as well. |
|
| 3. CODER To print manufacturing date and expire date. |
