Filling and Packing Machines / Metal Tanks / Water Treatment

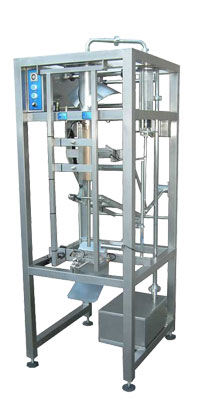

PManual Form, Fill & Seal Machine
...for liquids.

A simple lever operated machine for the packaging of liquids such as milk, juice, water and yoghurt. This machine produces top quality sachets with strong seals and excellent volume accuracy.
The positive displacement pump will suck the product from the low mounted built-in balance tank, therefore no elevated holding tanks are necessary. The very robust construction and simplified mechanism require very little maintenance.

Specifications:

Power Supply: 230V Single Phase
Air Supply: None
Dimensions: 1900H, 720W, 800D
Mass: 150kg
Pump Volume Range: 0ml to 1100ml
Vertical Seal: 300W Impulse
Horizontal Seal: 300W Impulse
Film Roll Size: 320mm wide, 20kg, 80/90 micron
Sachet Size: 150mm Layflat up to 250mm long (adjustable)
Construction: 304 Stainless Steel
Speed: 1 Liter - 400/Hour
