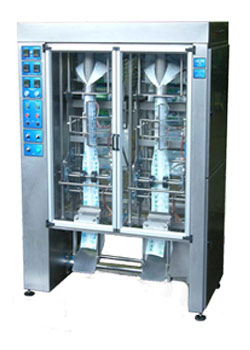

FM2 Double Lane Form, Fill & Seal Machine
...for liquids.

An improved and modernized electro-mechanical machine for the packaging of liquids such as milk, juice, water and yoghurt. Produces top quality sachets with strong seals and excellent volume accuracy. The positive displacement pump will suck the product from the low mounted built-in balance tank, therefore no elevated holding tanks are necessary.
The very robust construction and simplified mechanism require very little maintenance. All parts such as motors, bearings and electrical components are standard off the shelve. Specialized parts such as seal elements are available from us at very low cost.

Specifications:

Power Supply: 230VAC, Single Phase, 12Ampere
Compressed Air: None
Operation: Extremely quiet electro-mechanical
Construction: Grade 304L Stainless Steel
Main Drive Motor: 0.55kW Speed controlled
Seam seal type: Constant heat, 300Watt at 24VAC
Horizontal seal type: Single profile wire impulse at 0-12VAC with digital timer and phase control
Dosing pumps: Two separate 0.37kW food grade centrifugal pumps with potentiometer adjustment
Film feed: Two separate speed controlled feed motors with digital timer control
Plastic film:As standard: 320mm wide 80 micron LDPEAny other type, width and thickness as required
Output: (product and film quality dependant)1 litre: 5000/hour250 mililitre: 7200/hour
Products: Milk, water, juice etc.
Dimensions: 1500W x 900D x 1850H
Mass: 650kg
Side doors and roof: 1.2mm s/s sheet
Front and rear doors: 4mm toughened glass in aluminium frames
Product inlet: 300mm from floor level, into a 40 litre balance tank with float control
Other specifications:
One 8watt UV germicidal film steriliser per lane.
Impulse seal cooling water through solenoid valve and external water supply, or optionally through 15 litre water tank with pond pump
Hot foil date coders optional.
Photosensors for registered print optional
The machine is supplied with a generous portion of consumables such as seal wires and teflon tape, as well as two complimentary reels of film for demonstration and training purposes
