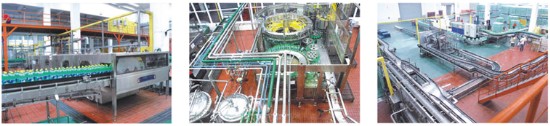

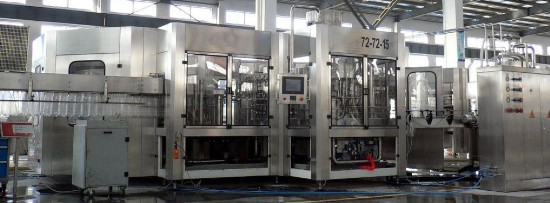

Specification for automatic rinser filler capper QGX24-24-8

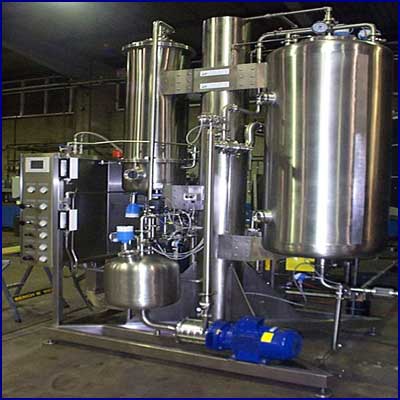

GPK-6 Carbonator

Product Description

This machine is mainly used to the carbonation and mixing of water, syrup and carbon dioxide in the production of various carbonated drinks such as lemon, coke and juice. This machine is the main equipment in the whole beverage production.

Features:

1. The machine adopts the advanced technology in chemical industry_static mixer(carbonation machine). The water taken from water holding tank and the syrup taken from syrup holding tank to to have first step mix proportionally(adjustable) and then taken in the carbonation tank(maintained with co2), the beverage taking the slicing path to increase carbonizing time, assure mixing result and deoxying.

2. The tanks are insulated to avoid temperature loss and all parts in contact with the products are made of stainless steel. It adopts high quality water pump and famous brand electronical parts to form complete automatic control system. It is featured by huge quality transmission area of liquid and gas, less resistance loss, high efficiency, energy saving, simple struction. In addition, the multilevel centrifugal pump with reliable performance and low noise is adopted, which guarantee the whole machine's good performance.

3. It has the advantages of accurate mixing rate and easy adjustment. It is convenient to adjust the capacity and the proportion of syrup and water without replacing parts.

4. The co2 volume is easy to be adjusted according to requirements by co2 pressure control and water flow and temperature.

5. The machine sets up liquid level auto control system which gains the advantages of harmonious movement, compact sructure, continous work and high-level automation.

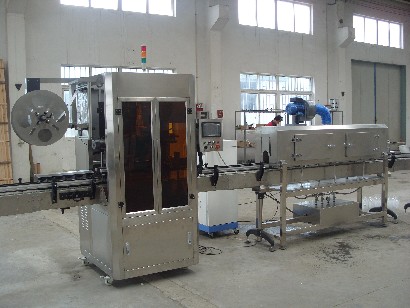

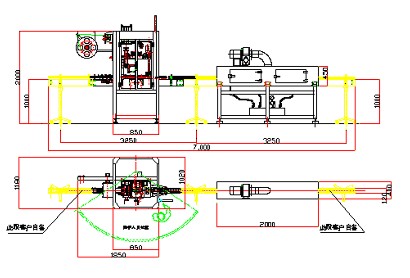

Shrink Sleeve label Applicator

a) Single Contraction Label Feeding Tray: Automatically controlled by micro-computer;
b) Automatic detection & positioning
c) Swift and labor-saving for changing labels
d) Absolutely precise cutting-off position
e) Electrical Appliance Configuration Specification

Our automatic label sleeving machine adopts PLC control and automatic positioning module, servo motor and frequency converter. Its automatic positioning system ensures the casting label precise, rapid and stable. Besides, its touch screen is featured with humanized operation.

" The machine is made from Stainless Steel: the whole machine is waterproof as well as rust-proof.
" Adjustable cutting blade: uniquely cyclotron cut-off, double sided cutting edge with a long service life.
" Self-positioning centre guide pillar: more stable for label delivery.
" Synchronous bottle divider: more stable transmission for bottle
" Label brush: a more precision for casting label.
" Label-controlling electric-eye shelf: unique combination of tail and electric-eye to improve the precision when cutting off the plastic film.
" Push-button control cabinet: a more humanized operation.
" Independent feeding material shelf: the position of the material shelf is optional at will.
" Applicable Bottle Type : Various kinds of bottle types, for example: round bottle, square bottle, flat bottle, curve bottle and cup-shaped, etc.

This serial of equipments serves in full auto smart packaging line integrating the functions of delivering bottles, classifying bottles, label sleeving and label shrinking. High speed, precise positioning, saving labor and perfect package are the design tenet of this serial of equipments. It can be applied to the beverage factory and the health food products factory. It is pleasing to the eye and easy to clean and maintain (Take Type ZYP-100M for an example, the following is the details of the Type)

• Synchronous drive, any driving belt replacement may be finished quickly, compared with traditional multiple interlocking belts(its replacement and maintenance need more than 6 hours), the driving belt is easier and simpler to maintain without interupting production.
• Unique cutter head across China, suitable to 30mm~~ 130mm containers, the cutter head is completely free of replacement and adjustment, unique touch man-machine interface, namely automatic positioning after searching out origin which is safe and convenient, and is leading the products alike.
• Single Contraction Label Feeding Tray: moderate height favors label fixing; automatically controlled by micro-computer; free of setting and adjustment, only need to push the button lightly and then label is in automatic detection & positioning; swift and labor-saving for changing labels, absolutely precise cutting-off position.
• Label feeding part: dynamic-force synchronous tension controls label feeding, feeding capability: 90m/min., volume label feeding tray: 500mm, applicable internal diameter of paper tube: 4', 8', 10', stable tension of label feeding part ensures the precise of the length of label, stable and fast feeding, and the precise of delivering label and casting label.
• Stepping casting label part of centre guide pillar, casting speed is 100B~0B/Min.
• New-type cutter: drived by stepping motors, high speed, stable and precise cutting, smooth cut, good-looking shrinking; matched with label synchronous positioning part, the precise of cut positioning reaches 1mm.
• Multi-point emergency halt button: Emergency halt buttons can be set in proper position of production lines so as to make online execution safe and production smooth.
• Special hot-wind shrinking oven: High-pressure blower, special hot wind circulating flow helps save energy. The shrinking effect is unmatched, flatten shrinking effect over curve bottles, traditional shrinking ovens are unsatisfactory in shrinking over curve bottles.
• New-type steam shrinking oven: Thermal contraction rate increases greatly, applicable to various and irregular round bottles, square bottles, flat bottles, etc.. Repairing and adjustment over the oven is convenient, flatten shrinking effect, steam drums are set for steam jetting, so the tube is unhindered. Each side of the jetting mouth is divided into four sections, the height, level position and the amount of steam jetting of each section can be adjusted separately, which can make the shrinking perfect. The low-pressure steam drums are made of seamless steel tube, use stainless steel flexible conduit quick-connect as connectors which are easy to be removed and installed. The housing of the whole machine is made of stainless steel and is in heat preservation which not only saves energy, but also is qualified for international safety standard. The stainless steel water pan on the bottom can collect condensed water which may be released after connecting a pipe to the pan, so as not to influence working environment. There are four forms on the body, two in the behind, and two in the front. The whole machine is waterproof, rust-less, and convenient to operate and maintain,

Main Technical Parameters

Voltage specification:

1. host machine: AC220V?50?60HZ?1. 5-2KW? single phase
2. spare host machine: AC220V?50?60HZ?4KW? single machine

Production speed:

Standard label length: 100mm, production speed varies with clients' needs; standard speed is 100-200bottle/min
M labels, faster is the production speed.
Applicable Diameter of Bottle Body: ?28 mm-?125mm
Applicable Length of Label: 30 mm ~ 250mm
Applicable Thickness of Label: 0.03 mm ~0.13 mm
Applicable Materials of Label: PVC?PET?OPS

Machine Size:

1. Size of Host Machine: L2100mm*W850mm*H2000mm
2. Steam Shrinking Oven:
Steam consumption: 50Kg/H
Steam Pressure: 1Kg/ cm2
The volume of the oven: L2000mm*W400mm*H1500mm

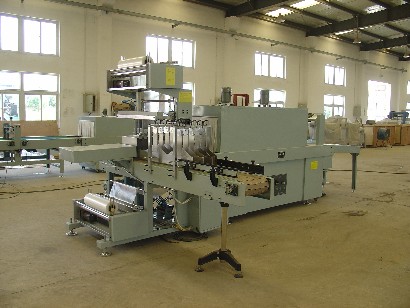

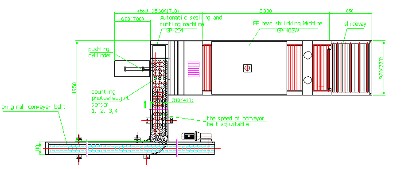

Automatic Shrink wrapper

Purpose:

This machine is applicable to the collective packing in food, can, beverage, alcohol, daily chemical products and commodity. (applicable to round shape, square shape and flat shape). Products after packing possess the functions of anti-moisture, anti-dust and anti-breakage.

Features:

1) Rational machine structure design, easy manipulation, this machine can be used with PE thermal contracting machine and also can be connected to be unmanned packing line.
2) Have automatic arranging function, can finish different specification packing.
3) Using roll film to complete the whole process of bagging, filling, sealing and cutting automatically with high speed.
4) Using PLC Control to reduce the number of mechanical contacts, contributing to a more stable system and easier maintenance.
5) Stepless speed regulating by frequency controller which is convenient and simple for operation.
6) It is stable and reliable by using photoelectric detection control.

Specifications:

1) Model: GPK-254
2) Machine size: 2500 x 1650(1750) x 2080mm
3) Shrinking size: (150-300/450) x (100-200/300) x (50-350)mm
4) Packing capacity: 1-15bag/min
5) Voltage: 380V,50Hz
6) Power: 14kw(16kw) ----- 22kw(25kw)
7) Source: 0.4-0.8MPa, 0.4 m3/min
8) PE film specification: (200-400/600) x (0.03-0.15)mm, G?25kg,ø?250mm
9) Convey speed: 2-33m/min, loads?60kg
10) Machine weight: 500kg(Net weight), 700kg(Gross weight)


Main configuration:

" Photo-electric switch: Omoron
" PLC: MITSUBISHI
" Transducer: Fuji
" Magnatic contactor?air break switch: Simens
" Pneumatic components: From Taiwan or Italy


Purpose:

This machine is applicable to the outer carton packing and collective of foods, beverage, daily-use chemical products suitable for heavy products. After packaging feature, anti-moisture anti-dust and anti-breakage.
Specifications:

Specification for automatic shrink wrapper GPK-402WT
