SAUCE AND POWDER SACHET MACHINES

10 LANES LIQUID FILLING MACHINE (ML10PL)

Description

This fully automatic packaging machine is designed to prepare sachet type packages (affixed on 4 sides) and to place untouched liquid products into the sachets. Ketchup, mayonnaise, mustard, olive oil, liquid soap, shampoo, water, conditioner, gel, conditioner and similar liquid and gel-like products can be packaged with the precise servo motor filling system on the machine.

Four side seal sachet packaging machine for liquid and paste of products with many customer reference of major food, cosmetic and pharmaceutical manufacturers. High weight accuracy. The machine can max 30 sachets/lane/min sachets depending on number of filling lanes.

Specifications Including:
Material: SS 304
Max film width: 960mm
Lanes: 10
Packing speed: max 30 bags/min/ lane
Filling system: Piston pump
Bag width: 30-120mm
Bag length: 80-180mm
Packing weight: 10ml ( ±1%)
Seal way: 4 sides seal
Voltage: 220V / 1P/ 50Hz / 5.5kw
Pneumatic: 0.8m3/min,0.8mpa
Size: 1415mm x 1686mm x 2130mm

Product Hopper Tank
Colour mark detector
Free quick wear spare part
Optional:Ribbon printer
Finished product conveyor


FULLY AUTOMATIC BOTTLE FILLING & CAPPING MACHINE (HFFS1418A)

Description

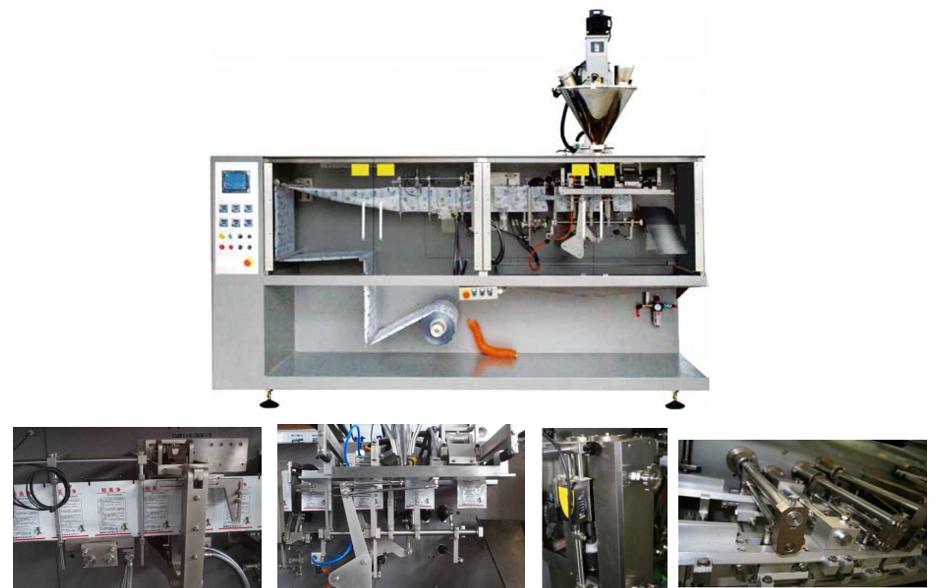

This machine can be used to fill and package powder type products like milk powder, instant coffee, instant powder drinks into the 4 side seal sachet type packages. This 4 side seal sachet packaging machine is used to produce single piece sachet of 4-side sealed bag. It can do the work of folding, cutting, bag-forming, code-printing and counting. Fully 304 stainless steel construction. PLC based with easy to use touch screen to operate the machine. The sachet size range that the base machine produces, is 60mm x 140mm, up to 50mm x 130mm, with speeds up to 60 sachets per minute. Depending on the weight range and sachet sizes these speeds vary.



Specifications Including:
Material: Machine frame SS 304
Bag width: 60-140mm
Bag length: 80-180mm
Filling range: 200g (±1%)
Air consumption: 0.6Mpa, 0.8m3/min
Speed: 40-60 bags/min
Power: 3.5 kw
Machine weight: 800kg
Size: 2850mm x 940mm x 1400mm

Servo motor auger filler
10-digit cold embosser
Finish product conveyor
Free quick wear spare partOptional:
