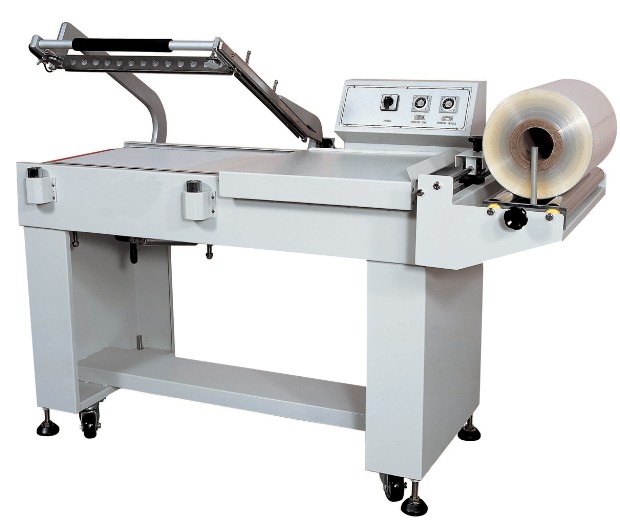

Semi Automatic L Bar Sealer GPK 5545T
Shrink Wrapper and Heat Tunnel > Semi Automatic Pneumatic L Bar Sealer
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
Technical features
- High temperature and sticky free L bar sealing knife, sealing action smoke & burn free, the sealed parts are tidy and clean.
- Teflon on the sealing knife.
- After sealing, the packaged product goes into the shrink tunnel automatically by the conveyor belt.
- Conveyor belt speed is adjustable.
- Sealing time is controlled accurately by time delay.
- Double electromagnets makes for stronger pressure.
- Adjustable film layer with needle device, it is able to fit different size film, max 550mm.
- Sealing frame moves up automatically, controlled by a cylinder.
- Sealing knife has a hot protection device on.
- Matched up with a shrink tunnel for high packing speed.
- Suitable for PVC, POF, PP film's.
Technical Specification
| Model | GPK-5545T |
| Machine dimensions LxWxH (mm) | 1560×725×1040 |
| Machine packing size LxWxH (mm) | 450×400×250 |
| Machine sealing size LxWxH (mm) | 550x450 |
| Packing speed (pcs/h) | 800-1200 |
| Netweight (kg) | 125 |
| Power (kw) | 1.2 |
| Power supply | 1f110V/220V 50/60Hz |
