Semi Automatic Filling Machines FLS Series
Sales team

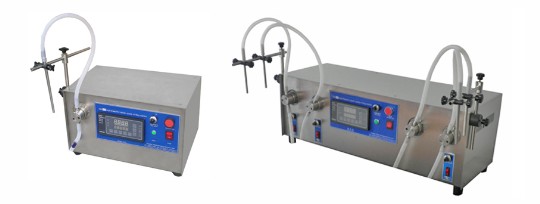

Gearpump filling machines for products like honey, creams, liquid soap, ointment. Filling accuracy less than 0.5%
| Model | FLS-1 | FLS-2 | FLS-4 |
| Speed (50ml per/min) | 5-20 / 20-35 | 5-40 / 20-70 | 5-80 / 20-140 |
| Work principle | Electromotion | Electromotion | Electromotion |
| Filling nozzles | 1 | 2 | 4 |
| Filling pump | 1 | 2 | 4 |
| Metering range | 1 - 10000ml | 1 - 10000ml | 1 - 10000ml |

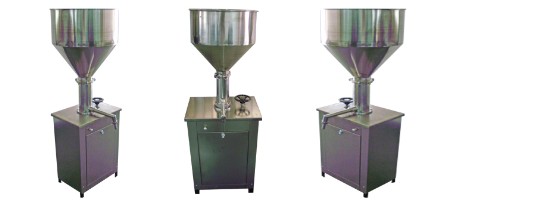

Paste Filling Machines for products like shoe polish, tooth paste, cream, jam, starch gum.
| Model | FLS-2P | FLS-5P | FLS-20P | FLS-30P | FLS-50P | FLS-100P |
| Range ml) | 0.5-20 | 1-50 | 5-200 | 10-300 | 50-500 | 50-1000 |
| Accuracy appox |
0.7% | 1.5% | 1.5% | 1.5% | 1.5% | 1.5% |
| Speed per/min |
10 - 60 | 10 - 40 | 10 - 30 | 10 - 30 | 10 - 30 | 10 - 30 |
| Size | 350x180x730 | 350x450x1300 | 350x450x1300 | 500x350x1300 | 500x500x1300 | 500x500x1300 |
| Weight | 8 kg | 42kg | 50kg | 60kg | 75kg | 85kg |

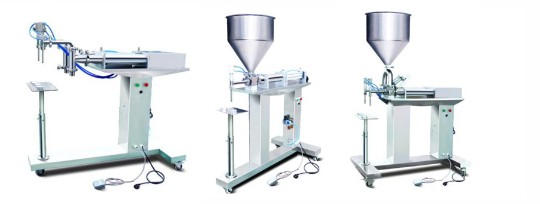

Piston Filling Machines for most liquids and creams
| Model | FLS-1PA | FLS-2PA | FLS-1PB | FLS-2PB |
| Range (ml) | 100-1000ml | 100ml-1000ml | 100ml-1000ml | 100ml-1000ml |
| Filling type | One nozzle | Double nozzle | One nozzle | Double nozzle |
| Accuracy appox | 1.5% | 1.5% | 1.5% | 1.5% |
| Speed per/hour | 800-2000 | 1500-3800 | 800-2000 | 1500-3800 |
| Air supply | 0.2m3/min | 0.4m3/min | 0.2m3/min | 0.4m3/min |

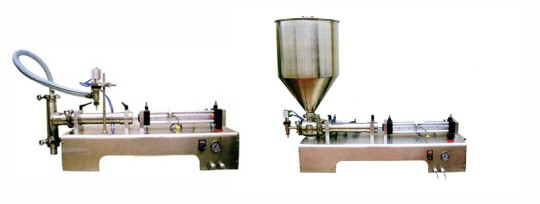

Piston Filling Machines for most liquids and creams
| Model | FLS-6PS | FLS-12PS | FLS-25PS | FLS-50PS |
| Range (ml) | 5-60 | 10-120 | 25-250 | 50-500 |
| Accuracy appox | 1.5% | 1.5% | 1.5% | 1.5% |
| Speed per/min | 5-40 | 5-40 | 5-50 | 5-40 |
| Power | 220V / 50Hz | 220V / 50Hz | 220V / 50Hz | 220V / 50Hz |

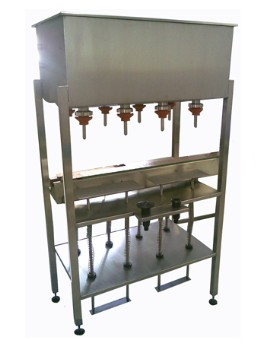

| Model | FLS - 014 |
| Filling Volume | 100ml - 25 litres |
| Filling Speed | 1000ml in 10 seconds |
| Filling level | Automatic to preset level |
| Filling Stations | 2 - 4 - 6 - 8 or as required |
| Power Supply | Only for optional cap tightener |
| Dimensions Approximate | 1800 * 800 * 450 * |
| Weight | 70Kg |
| Construction | 304 Stainless Steel |
| Optional | Manual or Semi auto Pneumatic filling |
| Optional | Bottle rinser |
| Optional | Pneumatic cap tightener |
| Model (FLS - 01) | Semi-auto volumetric filling machine |

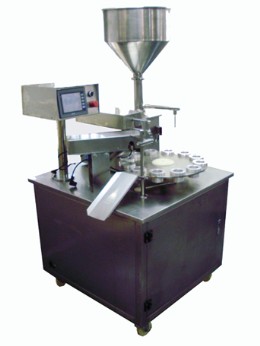

| Model | FLS - 04 (Tube filling & sealing) |
| Sealing mode | ultrasonic |
| Filling mode | Piston |
| Filling Volume | 50 - 300ml |
| Speed | 5-25 per/min |
| Tube height | 180mm |
| Air pressure | 0.6Mpa |
| Power | 220V, 1.5Kw |
| Dimensions Approximate | 1300 * 900 * 1900 * |
| Weight | 150Kg |
| Construction | 304 Stainless Steel |

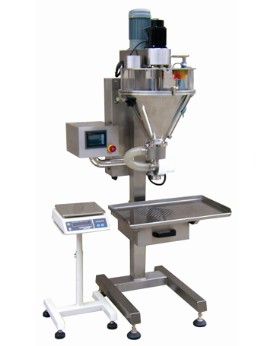

GL-1A3 Small dose filling machine (1-500g)
This type is with the functions of measuring, filling and Weight tolerance alarm. It�s designed according the GMP standard.
Metering Mode:: Auger rotation filling traced by weighing feedback .
Packing weight: 1� 500G (The screw attachment is to be changed)
Weighing range: 1�600G (Resolution is 1g)
Filling Accuracy: Package weight = 100g,with an error=�0.5-1g
Package weight >100g,with an error=�0.3-1%
Filling Rate: 20�60bags/min
Power supply:3P/380V(1P/220V according your requirement) 50�60Hz
Total power: 1.1KW.
Total weight: 150KG
Overall Dimensions: 800�700�1900MM
Hopper volume: 26L
