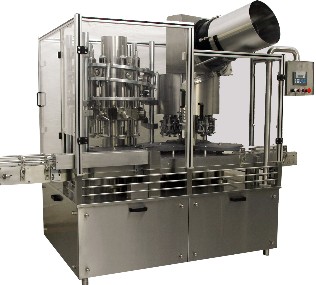

Rotary Volumetric Filler - FA 110
Filling Machines > Automatic
FS 110 - Rotary Volumetric Filling & Sealing Machine
Features
- cGMP model based on advanced technology
- Single Operator for two operations
- No contamination as immediate sealing of filled bottles
- Centralized volume adjustment system – No down time in volume settings
- No bottle- No Fill system
- Additional sensor provided on Cap Chute to avoid damage of caps during rotation
- Sensor for No cap in chute- Machine stops
- Separate Variable Drive to control speed of conveyor
- Electronic liquid level controller and pneumatically controlled control valve
- PLC Control
- Acrylic cabinet to avoid dust particle during operation
Specification
Output/Hour |
6 x 6............6 x 8............12 x 8............16 x 8 5000............7000.............9000.............14000 |
| Capacity | 30ml to 250ml (with the help of change parts) |
| Accuracy | Approx 0.05 to 1% due to piston dosing principle |
| Filling Accuracy | 0.5-1% |
| Electrical Rating | 400V, 3 Phase, 50Hz, 4 wire system |
| Power Require | 4 H.P. 3 Phase |
| Dimensions | 2500*1250*2150 |
| Bottle Diameter | Min. 25 to Max. 80mm |
| Bottle Height | Min 38mm to Max 200mm |
| Cap | 22mm, 25mm & 28mm |
