Inline Piston Filler FA 130
Filling Machines > Automatic

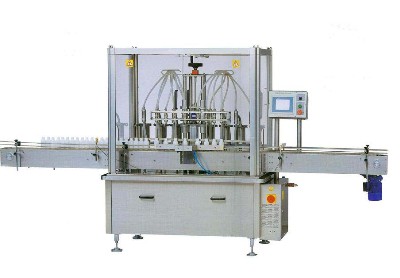

FA 130 - Piston Filling Machine
Features
- Siemens or Easy View PLC control system and easy to use touch screen technology. Except for 2 nozzles filler.
- Germany FESTO cylinder with Panasonic Servo Motor for 8 nozzles filler and OMRON switch.
- 99% filling accuracy.
- Variable speed drive to ensure smooth operation and easy to adjust from one bottle size to another.
- Optional diving nozzle is available to prevent bubble during filling process.
- Shut off nozzle to optimise the filling operation.
- No bottle no filling features to prevent wastage and cleaner filling operation.
- All parts in contact with filling material is made of corrosion resistant material (stainless steel
- 316L) to meet cGMP standard.
- Conveyor and stainless steel tank are included
Specification Model
| Filler Heads | 2 | 4 | 6 |
| Liquid | FA 132 L | FA 134 L | FA 135 L |
| Cream | FA 132 C | FA 134 C | FA 135 C |
- Filling range: 5-60 ml, 25-126 ml, 50-250 ml, 75-500 ml, 100-1000 ml, 500-2500 ml and 1000-5000 ml.
- Air pressure: 0.4 - 0.6 Mpa.
- Power: 500 W to 2.0 KW.
- Capacity: 4 - 65 bottles/min.
- Voltage: 380v 3 phase, 220v 1phase or 110v 1phase.
- Dimension: 3400 * 1550 * 1750 mm.
- Weight: 500 - 900 kg.
- Note: the above specification is used for guidelines only. The actual figures are much dependent on the filling requirement
