Inline Filler, Capper FA 120
Filling Machines > Automatic

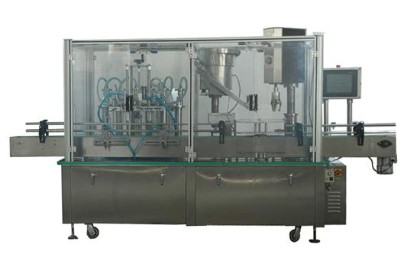

FA 120 - Filling Capping Machine
Features
- Siemens PLC with easy to use touch screen control panel system with OMRON switch.
- The piston mechanism is driven using Panasonic Servo Motor and supported using FESTO cylinder and BANNER Sensor.
- Shut off nozzle to optimise the filling operation with no drip fill nozzles.
- 99% filling precision and all parts in contact with filling material is made of stainless steel 316L to meet cGMP standard.
- Optional diving nozzle is available to prevent bubble during filling process.
- Chuck capping head and capable to handle both plastic and aluminum cap.
- Panasonic Cap motor with Vibrating cap loading system.
- Easy to adjust from one bottle and cap size to another type.
- No bottle no filling and no bottle no capping mechanism.
Specification
| Model | FA - 120 |
| Filling range | 5ml-10000ml |
| Bottle diameter | 15 - 100mm |
| Bottle height | 60 - 150mm |
| Filling Speed | 60ml..............40-80 bpm 125ml............40-70 bpm 250ml............30-50 bpm 500ml............20-40 bpm 1000ml..........16-24 bpm 2500ml..........8-16 bpm 5000ml..........4-8 bpm |
| Dimensions | 4200*1200*1700mm |
| Weight | 1200Kg |
