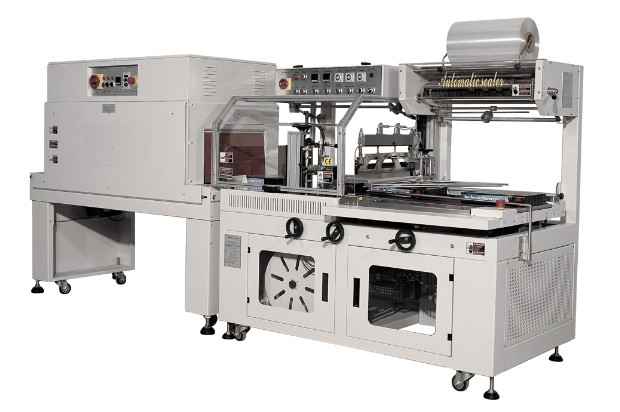

High Speed Side Sealing and Shrinking GPK-5545TBC
Shrink Wrapper and Heat Tunnel > Side sealers
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
Technical features
- GPK -5545TBC fully automatic side sealer, widely used in large quantity packaging, with high automatic in-feed, conveying, bagging, sealing and shrinking, with high work efficiency, its sealing size is adjustable.
- Sealing part adopts a vertical drive, and has a highly advanced side sealing cutters, the sealing line is constantly accurately straight and strong and it is in the middle of the package.
- It has a constant temperature heating sealing system, suitable for sealing PE, POF film, the size is adjusted by hand wheel making for easy operation.
- The machine has an advanced PLC system with safety protection and alarm devices, ensures a continues sealing action with simple maintenance.
- Special designed auto errors detector ensures the machine will stop automatically when the plastic is blocking or the conveying belt is off tracking.
- Film in-feed length controlled by electric eye and timer, accurate control makes better shrink.
- There are horizontal and vertical electric eyes, easy to switchover and also easy to pack thin and small products.
- Auto remaining film reeling controlled by one motor, the remaining film will not break even if the film is too loose or too tight.
Scope of Application
Suitable for large quantity shrink wrapping industries such as CD, VCD, cosmetics, electronics, printed matters, colour box, greeting card, album, picture frame, aluminium pieces and wooden products.
Technical Specification
| Model | GPK-5545TBDC | GPK-5030 |
| Machine dimensions LxWxH (mm) | 1615 × 835 × 1470 | 1600 × 770 × 1505 |
| Wrapping size W+H (mm) L+H | < 430mm unlimited | 1000 x 450 x 250 |
| Machine sealing size LxWxH (mm) | 550X450 | / |
| Tunnel size (LWH) | / | / |
| Packing capacity (differs with different size products) per/M |
20-50 | 30-50 |
| Shrinking film used | POF,PE | POF,PE,PVC |
| Power (kw) | 5.5 | 12 |
| Power supply | single phase, 220v, 50/60HZ |
single phase, 3800v, 12kw |
| Air pressure | 5.5 | / |
