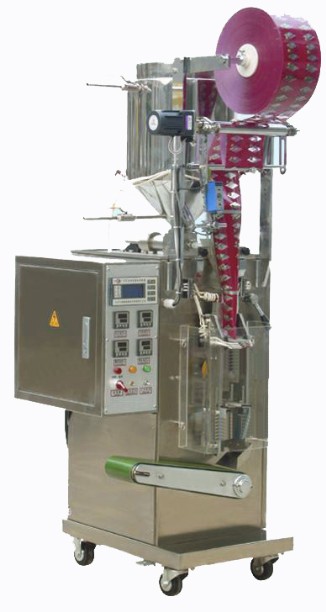

GPP-60LC Liquid Packaging Machine
Vertical Packing Machines > Sachet and Stick Packing Machines
| Model | GPP-60LC |
| Bag size | (L)80-145mm (W)30-100mm |
| Packing speed | 40-60 bags/min |
| Packaging type | 3 side and 4 sided seal |
| Measuring range | 1-80ml |
| Power voltage | 380V or 220V 1.55KW |
| Dimension | 695 x 770 x 1640 |
| Weight | 230Kg |
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
Technical characteristics:
" All packaging procedures such as bag- making, measuring, filling, selling, cutting and counting are finished automatically
" Controller can be set either under set length control or photo electronic colour tracing. The bag length and cut is set in one step, this saves time and film.
" With quadruple heat-control, each sealing track temperature can be adjusted separately, creating a consistent heat balance and a seal, suitable for a wide range of packing material.
" The machine is equipped with cursor ACS (automatic control system) creating an accurate pattern and cutting position.
" Adopts a gearpump liquid dosing system.
" All parts in contact with the material are made with stainless steal or non toxic materials. Side open shield cover for safe observation.
" The machine has a very low power consumption and is easy to maintain
" The position stop function insures the heat sealer is always in the open position when the machine stops working , preventing packing film, materials and sealers from burning.
" Applicable materials should be composite films like: PET/PE,PET/AL/PE,OPP/PE.
" Optional: Ribbon printer, air expeller devise, line sealing or terminal sealing, knocking devise on bag former.
