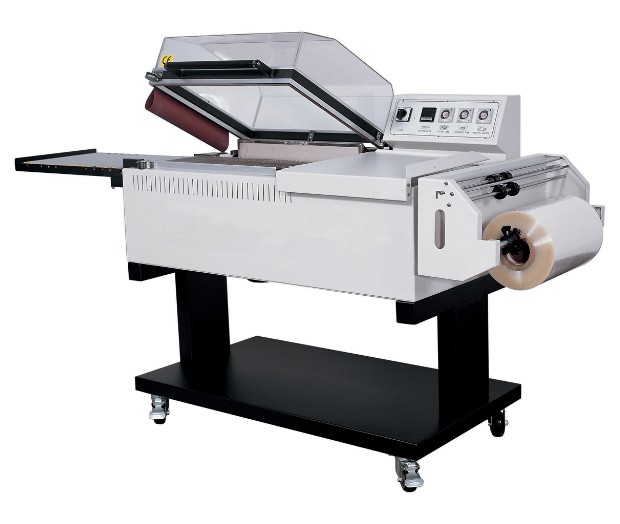

GPK- 5540A 2 IN 1 Shrink Wrapper

Shrink Wrapper and Heat Tunnel


Technical features

  • Integrated sealing and shrinking in one step.

  • Transparent hood makes the sealing and shrinking visible.

  • Glass fiber cutler's isolator and nickel alloy cutter in order to result in perfect sealing line, to avoid the film sticking the cutter. It has a special roller with a pin to make small holes on the film.

  • Does not become over hot after a long period of operation.

  • PPS thermostable cutter clip to bear heavy tension after long periods of operation

  • The height of the package supporting mesh inside the chamber can be adjusted for different sizes of products.

  • Assembled castors with brake on the bottom of supporting base, to move and fix the machine freely.

  • GPK-5540A is equipped with a stainless steel conveying mesh with adjustable height transporting the products from the sealing and shrinking automatically, this increase the packing capacity by double.

Scope of Application

  • This machine is widely used for outside shrink packing by film, such as foodstuff, beverage, pharmacy, video disc, hardware, cosmetics, book, toy and electronic products etc;
  • Suitable for shrink wrapping a combined product for sales promotion in supermarket, such as foodstuff, beverage, cosmetics, presswork and toy etc;
  • Suitable to put and use it in a small room where space is limited such as supermarket, monopolization shop, office and some experimental room etc;

Technical Specification

Model GPK-5540A
Machine dimensions LxWxH (mm) 1985x690x1065
Machine packing size LxWxH (mm) 450x300x200
Machine sealing size LxWxH (mm) 550x400
Packing speed (pcs/h) 800-1000
Netweight (kg) 140
Power (kw) 4.2
Power supply 1f110V/220V 50/60Hz
