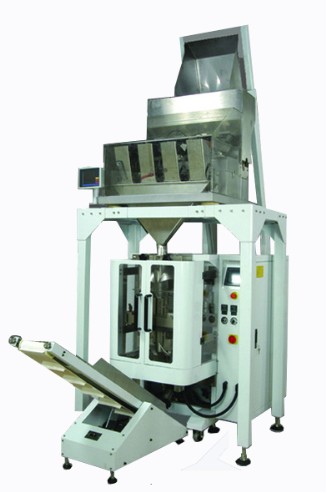

GP-4320 Vertical full-automation packaging machine
Vertical Packing Machines
Packaging range:
Suitable for packaging of granular, massive, strip, packaging range in 1200ml (equivalent to the products within 120 kg).
Technical characteristics:
Membrane touch screen makes operating the machine easy.
PLC Computer control system.
Using electronic quantity, weight packing is more precise and cost effective.
You can store 10 groups replaceable parameters of packaging products.
Servo motor touch and more accurate.
Independent control system, the accuracy of ± 1%
Horizontal and vertical sealing temperature controlled independently, can be good for various composite film packaging materials.
Specification
| Model | GP-4320 |
| Bag size | (80-300)×(50-200)mm (L×W) |
| Max width of roll film | 420mm |
| Packing speed | 5 - 60 bags/min |
| Measuring range | 150 - 1200ml |
| Gas consumption | 0.3m³/min |
| Air consumption | 0.65mpa |
| Power voltage | 220VAC/50HZ |
| Dimension | 1320mm×950mm×1360mm (L×W×H) |
| Weight | 540Kg |
