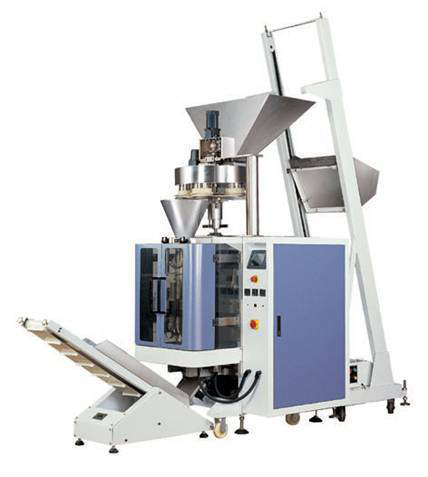

GP-14 Volumetric automatic packaging machine
Vertical Packing Machines
Combined parts
1. GP Series Packing Machine
2. Volumetic cups device
3. Lifting conveyor
4. Finished product conveyor
Options
1. Check weigher
2. Metal detecter
3. Turntable
Features
1. The machine completes the whole procedure of feeding , measuring, bagging, date printing, charging (exhausting), finished roduct out-putting automatically
2. The complete sets of machine is convenient and economical
3. According to he character of material, the volumetric cups can be designed as open-close type to avoid ddamaging materials
Application
Granule,, rice, melon seeds, peanuts, etc
Specification
| Model | GP-4321 |
| Bag size | (80-300)×(50-200)mm (L×W) |
| Max width of roll film | 420mm |
| Packing speed | 5 - 60 bags/min |
| Measuring range | 150 - 1200ml |
| Gas consumption | 0.3m³/min |
| Air consumption | 0.65mpa |
| Power voltage | 220VAC/50HZ |
| Dimension | 1320mm×950mm×1360mm (L×W×H) |
| Weight | 540Kg |
