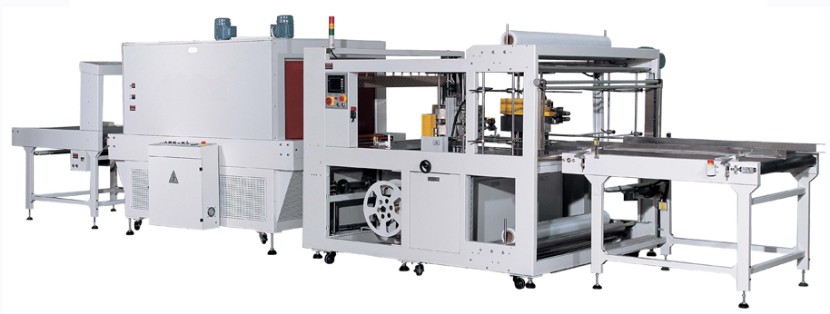

Full Close Sealer GPK-6030AF

Shrink Wrapper and Heat Tunnel > Full Close Sealer


Scope of Application

Suitable for floor boards, ceramics, furniture, electric appliances or other shapes of products for closed shrink packing.

Basic parts

  • This item including straight feed-in and upright feed-in.
  • Electronic Touch Screen, PLC to integrated mechanism, electricity, pneumatically
  • According to different sizes of products it could controlled and Tracked by PLC to automatic packing without an operator.
  • It has an inductive motor for collecting wasted film automatically at the bottom of the machine and reduces the noise. The packing speed is controlled by translator controller.
  • Double fan motors for better circulation and distributes the heat evenly.
  • Different product combinations can be sealed accurately and automatically.
  • Complete closed packing for water proof and light proof.

Technical Specification

Model GPK-6030AF
Machine dimensions LxWxH (mm) 250015501920
Machine packing size LxWxH (mm) 500x500x250
Sealing cutter size/Tunnel size LxWxH (mm) 1000x250
Infeed conveyor height (mm) 850 +/-50
Packing speed (pcs/min) 6-12
Net weight (kg) 500
Power (kw) 5.5
Power supply 220V/380V 50/60Hz
Air pressure 6.0
Film used PE
