Description
| No | DESCRIPTIONS |

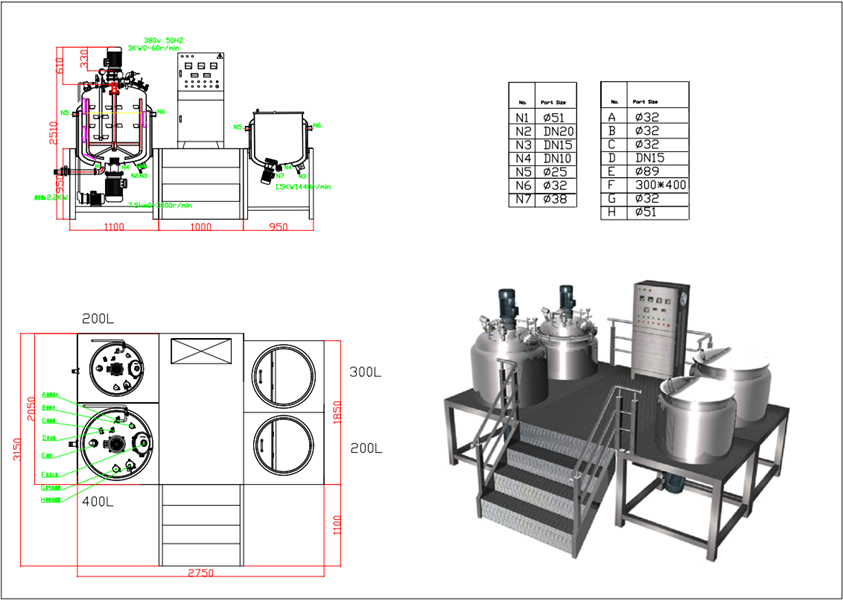

| 1 | 200l VACUUM HOMOGENIZER MIXER TANK
Working volume :200L Design volume :240L Top mixing:2.2kw 0-63rpm Bottom homogenizer :3kw 0-3000rpm Vacuum pump:0.81kw Electric part: Delixi, Schneider Motor: Siemens Inverter: Delta Electric parts: Schneider/Delixi speed:1440rpm Outer Material: SUS304 3mm Middle material: SUS304 4mm Inner material: SUS316L 5mm Weight :1100kg Install Size:2600*2300*2000mm Scraper: Teflon 6pieces Heating power:36kw Power: AC380 3phase |
| No | DESCRIPTIONS |
| 1 | 400l VACUUM HOMOGENIZER MIXER TANK
Working volume :400L Design volume :450L Top mixing:4kw 0-63rpm Bottom homogenizer :11kw 0-3000rpm Vacuum pump:1.5kw Electric part: Delixi, Schneider Motor: siemens Inverter: Delta Electric parts: Schneider/Delixi speed:1440rpm Outer Material: SUS304 3mm Middle material: SUS304 4mm Inner material: SUS316L 6mm Weight: 1400kg Install Size:2800*2500*2200mm Scraper: Teflon 6pieces Heating power:45kw Power:AC380 3phase |
| 1 | Water pot | Three-layer stainless steel container, top open cover, bottom head , top frame type wall scraping and stirring, bottom dispenser. Working capacity: 300L, full volume:360L | Stainless steel mirror polished square pipe, the level up to 300U |
|
a |
Inner pot | Barrel:stainless steel SUS 316L,thickness：3mm
bottom end cover：stainless steel SUS 316L, thickness：3mm |
|
| Jacket | Material: stainless steel SUS 304，thickness：3mm
Heating : electric heat preservation：Aluminum silicate fiber cotton，thickness: 30mm |
Jacket design pressure 0.22MPa | |
| Surface package | Material: stainless steel SUS 304，thickness：3mm | ||
| b | Pot cover | material: stainless steel SUS 304，thickness：3mm | Flip type one side detachable |
|
c |
Stirring | Bottom turbo stirring, SUS316L material | The bottom stirring force is greater, making the dispersion and mixing completely |
| Stirring motor | power：0.75 kw ，rotation speed: 1400rpm/min | ||
| Mechanical seal | Borgman seal technology | ||
| d | Pot bottom | Bottom outlet valve: DN51 SUS316L butterfly valve, temperature sensor, SUS304 material, with shielding wire | |
| 2 | Oil pot | Three-layer stainless steel container, top open cover, bottom head, top frame type wall scraping and stirring, bottom dispenser. Working capacity: 200L, full volume: 240L | Stainless steel mirror polished square pipe, the level up to 300U |
|
a |
Inner pot | Barrel: Stainless steel SUS 316L,thickness：3mm
bottom end cover：stainless steel SUS 316L, thickness：3mm |
|
| Jacket | Material: stainless steel SUS 304，thickness：3mm
Heating : steam fill in the jacket heat preservation：Aluminum silicate fiber cotton，thickness: 30mm |
Jacket design pressure 0.22MPa | |
| Surface package | Material: stainless steel SUS 304，thickness：3mm | ||
| b | Pot cover | material: stainless steel SUS 304，thickness：3mm | Flip type one side detachable |
|
c |
Stirring | Bottom turbo stirring, SUS316L material | The bottom stirring force is greater , making the dispersion and mixing completely |
| Stirring motor | power：0.55kw ，rotation speed: 1400rpm/min | ||
| Mechanical seal | Borgman seal technology | ||
| d | Pot bottom | Bottom outlet valve: DN51 SUS316L butterfly valve, temperature sensor, SUS304 material, with shielding wire |
