POWDER PACKAGING MACHINES



SCOPE OF OFFER: – For 4 kinds of powder filling, Free-flow and non-free flow product

SPC: 1kg to 30kg powder filling

QUOTATION

No Item Model No QTY Unit Price Total
1 Hoist Unloader Without Hoist 1
With Machine 1-1.Bag Clamp 1
1-2.Pneumatics Extrusion 1
1-3.Supporting Frame 1
1-4.Discharging Connector SUS304 1
1-5.Control 1
Optional 1-6.Bag Squeeze 2
1-7.Dust Collection for the hoist unloader and auger DC 2.2A 1
2 Lamp crusher   1
3 Horizontal Auger Conveyor EAC-168-500 1
With machine Hopper 50L Hopper 1
4 Weighing Auger Filling Machine INAF-550W 1
With machine 4-1.Auger Tooling #12 For Dosing range 1kg 1
4-2.Horizontal (Half Hinged Open Hopper) 80L 1
4-3.Bag Clamp with load cell For bag: W400-600mm 1
Optional



4-4.Auger Tooling #13 For filling 2kg 1
4-5.Auger Tooling #15 For filling 3kg to 30kg 1
4-6.Pressure model Screw For the non-free flow product 3
4-7.Closure For free flow product 1
4-8.Spinner For small dosing weight 2
4-9.Siemens PLC & HMI PLC:S7-1200

HMI:TP-700

1
4-10.Extra Bag Clamp For different size bag:W340-420mm 1
4-11.Pneumatic bag support device V Shape 1
EQUIPMENT INSTALLED AND START UP AT CUSTOMER’S PREMISES
PACKING & DELIVERY TO SITE (ex-works Pretoria) FAT-for buyers account
PROJECT MANAGEMENT -INSTALLATION, COMMISSIONING, TRAINING
TOTAL including optional parts and installation

TECHNICAL PARAMETER:

No Technical Parameter Picture

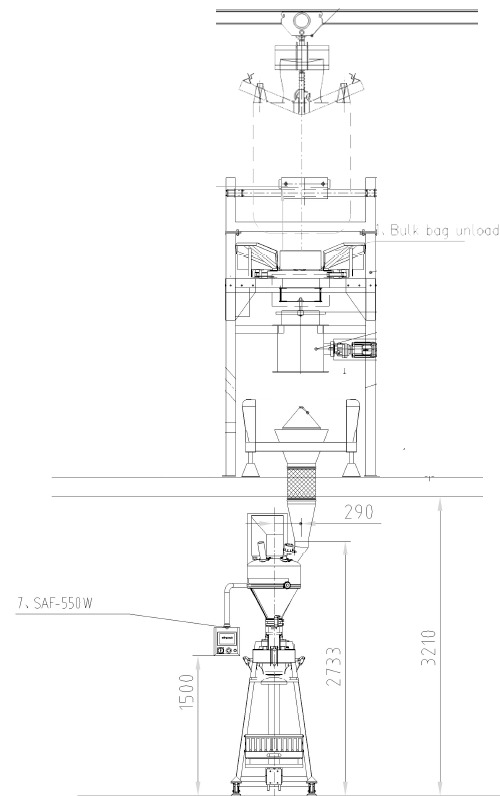

1 Bulk Bag Unloader

◇Model No.: BBU-A without hoist

◇Max Bag Size: 1200L*1200W*1100H

◇Frame Material: Stainless Steel 304

◇Hoist Railway Material: Stainless Steel 304

◇Voltage: single phase 220V 50Hz

◇Power: DC 24v

◇Tray Material: Stainless Steel 304

◇Broken Arch Model: pneumatic spring extrusion

◇Machine Weight:450Kg

(Without hoist)

Picture Just for reference

1-2 Pneumatics Extrusion

◇It can avoid material dropping down in a sudden when worker is untying the bag

◇If do not want the material to be discharge at one time, the valve can control it.

1-6 Bag Squeeze



1-7 Dust Collector

◇Air Consumption:750-1050m³/h

◇Air Pressure:940-690pa

◇Power:2200W

◇Max Noise:60dB

◇Dust Efficiency:99.9%

◇Machine Measurement:540L*560W*1500Hmm

◇Weight:102KG

2 Lump crusher

◇Model: LC-400

◇Production capacity (KG/H):500-800

◇Feed particle size (mm) :≤50

◇Moving knife blade : 22

◇Crushing motor (KW) 5.5 Weight (KG): 200

◇Structure One-piece structure, the pipe flange adopts quick-fit type

3 Horizontal Auger Conveyor

◇Model No: EAC-168-500

◇Discharge Distance: 500mm

◇Voltage: single-phase 220V 50Hz

◇Feeding Motor Power: 1.5KW Nord

◇Hopper: 50L

◇Material: SUS304

4 Weighing Auger Filling Machine

◇Model No: INAF-550W
◇Dosing Method: auger dosing
◇Packing Weight:5-25kg(Different packing size need change dosing auger)
◇Accuracy:±30g
◇Packing Speed: 10kg—-2bags/min, 25kg—-1 bags/min.(depend on filling material ,the smaller packing weight,the faster speed,)
◇Voltage: Three-phase 380V 50Hz 6.2KW
◇Compress Air:5-6Kg/cm²
◇Material : stainless steel 304
◇Hopper Volume: 80L (half Hinged-opening)
◇Machine Weight:800Kg
◇Machine Size: 1372L*1095W*3000Hmm

Main Components

*Servo Motor: Panasonic
*PLC:SIEMENS
*Weighing System: SCAIME
*Cylinder: Japan “SMC”
*converter: Schneider
*Level Sensor: Baumer

4-4 Auger tooling
4-5 Pressure Model Screw
4-7 Closure
4-8 Spinner
4-10 Extra Bag Clamp
4-11



V Shape Bag Supporter
