LIQUOR PET BOTTLING LINE



 SUB: TECHNO-COMMERCIAL PROPOSAL FOR LIQUOR BOTTLING LINE

CONTENT INDEX

1. Project Specifications
2. Commercial offer
3. Equipment Detail
4. Commercial terms

PROJECT SPECIFICATION

PRODUCT LIQUOR
BOTTLE PET ROUND 100ML
CLOSURE 28MM PLASTIC SCREW ON
LABEL ADHESIVE
OUTPUT 4000-5000BPH

COMMERCIAL OFFER :- LIQUOR BOTTLING LINE 4000-5000BPH

Sr.

No.

Description Qty Unit

Price

Total

Price

1 Empty bottle air conveyor 1 set
2 Filler Capper 12-5 including auto cap elevator

With flame/explosion proof motor and pump

1 set
3 Adhesive labelling machine 1 set
4 7-meter full bottle out feed conveyor 1 set
5 Outfeed collection table 2000mm x 800mm 1 set
6 Delivery to Krugersdorp
7 Project management, installation & commissioning
  TOTAL

OPTIONALS

8 Speed increase to 7000-8000 BPH (18-6)

High speed labeller / 20 metre conveyor

1



NOTE : Included a faster line price as an option, note the length of the conveyor (20m)

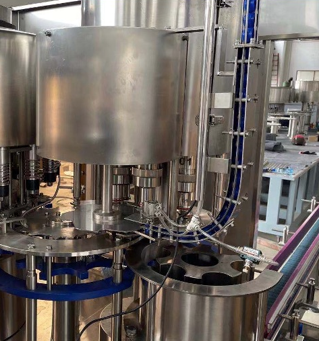

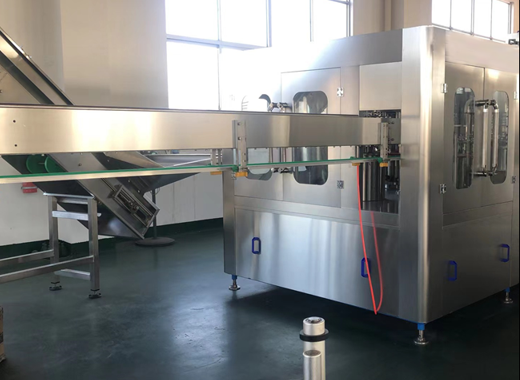

AIR CONVEYOR – FILLING AND CAPPING MACHINE 12-5

Specifications

Model : INP-W12-5
Capacity : Up to 5000BPH
Diameter of Bottle : Φ50~Φ95mm
Bottle neck : 28mm or 30mm
Bottle volume : 100-1500ml
Power : 1.3kw
Machine size : 2000*1800*2500mm
Machine weight : 1500kg approximately

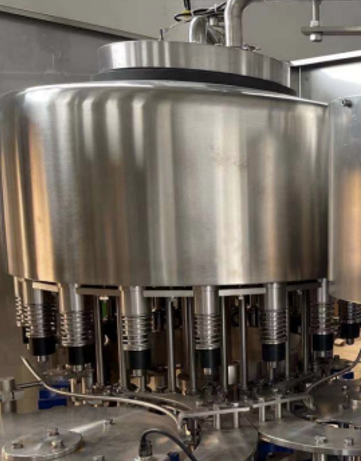

    Filling Part

·   Filling heads : 12pcs
·   Filling pressure : normal pressure (gravity
·   Filling temperature: Ambient
·   Filling nozzle speed : 200-230ml per minutes

    Capping Part

·   Capping heads : 5pcs
·   Compressed air pressure : 0.8Mpa



High precision filling nozzle, PLC variable signal control

All 304stainless steel construction
No bottle no filling, No bottle no capping
Pick and Place & capping system, electromagnetic capping heads, with discharge function, minimising bottle damage

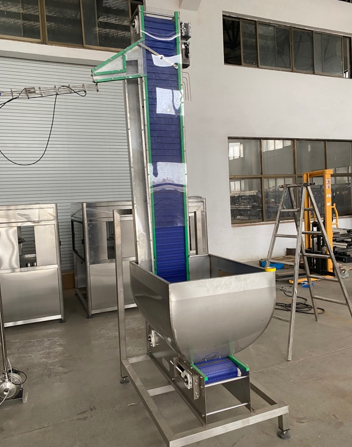

CAP ELEVATOR

Specifications

  • 304 stainless steel construction
  • Cap storage container : 5,000pcs caps
  • Food grade tunnel, low noise
  • Power: 0.55Kw

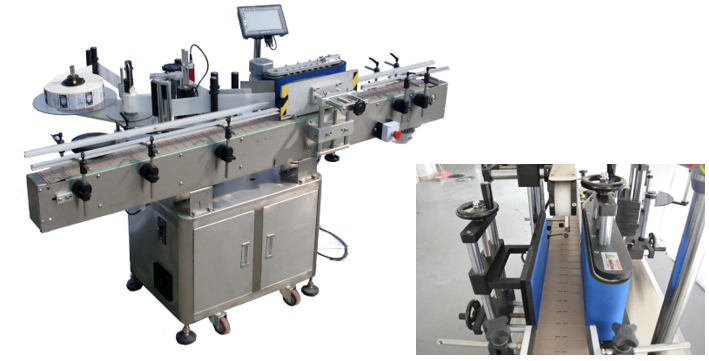

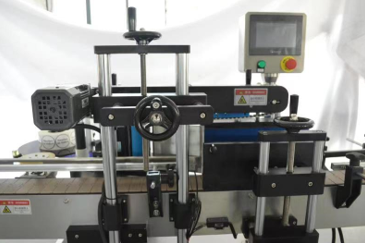

LABELLING MACHINES – ADHESIVE

Specifications

Labeling speed: 5000-6000bph
Suitable bottle diameter : 25-125mm
Label width: 200mm can be adjusted
Label Height: 25-280mm
Bottle height: Max. 350mm
Paper inner core: 5’-10’ can Be adjusted
Labeling precision: ±1mm
Power : 2kw
