Description
In-Line Pasteurizer 250L to 1000L
| 250lit/hr to 1000lit/hr In-Line Pasteurisers Model | Price, (VAT Excluded) |
| Compact up to 500lit/hr | – |
| Compact up to 1,000lit/hr | – |
| Economic up to 500lit/hr | – |
| Economic up to 1,000lit/hr | – |
| Optional Extras; Stainless Steel Enclosure | – |
| Dosing Pump – including conductivity sensor and automatic washing programme | – |
| V8 – To automatically switch between 2 finished milk tanks and programming for filling and cleaning the tanks. | – |
| CIP Pump – For returning CIP from Milk tanks if gravity return is not an option. | – |
| V3 b – For automatic draining of water from milk supply pipe to finished milk tank. | – |
| 7 inch screen – Larger screen, Standard is 4inch. | – |
| V7 – Valve and Programme for automatic CIP and Rinsing Control. | – |
| Separation Take off Point – If the customer wants to integrate a separator with the pasteuriser. | |
Fully Automatic HTST/Flash Pasteuriser
manufactured to suit a variety of processing requirements and products including milk, cheese, yogurt, ice cream, juice, honey, beer, oat milk, wine, cold brew coffee, syrups, botanical water, CBD, Flavoured drinks, kombucha and egg.
Description:
Fully automatic and user-friendly one touch control from start to finish.
- Electric (1 or 3 Phase power) or boiler supply heating. Product is heated at user selected temperature.
- Up to 3 times faster than a batch Pasteuriser.
- Production capacity is adjustable and can be preselected.
- Heat recovery of up to 92%.
- Easy operation via Touchscreen HMI Controlled PLC.
- All data is recorded on an integrated SD card which holds up to three years information. A USB can be used for downloading daily charts for record keeping and analysis.
All operations of the unit such as temperature, pressure, pump speed, valve position and alarms are recorded on the SD card.
- Continuous Pasteurisation which ensures that the product gets to the market in a timely manner.
Benefits of Compact Pasteurisers:
- Customised to suit customers’ exact requirements.
- One machine can be programmed for multiple products or processes.
- Can be integrated with additional equipment such as homogenisers, separators, tanks etc.
- Easy and safe to use and maintain.
- Fully automatic and user-friendly one touch control from start to finish.
- Easy operation via Touchscreen HMI Controlled PLC.
- High quality finish with reliable components (We offer a 12 month warranty on all of our pasteurisers).
- Low operating costs (Minimises energy consumption and includes heat recovery of up to 92%).
- Production capacity is adjustable and can be preselected.
- No need for manual cleaning – The pasteuriser includes a CIP (Clean in Place) system as standard. This system enables automated cleaning of the pasteuriser and connected sub-units, such as separator, homogeniser or tanks. The whole line can be cleaned with one CIP programme, which is easily selected and started from PLC.
- Electric (1 or 3 Phase power) or boiler supply heating. Product is heated at user selected temperature.
- Minimum installation effort or commissioning requirement.
- All data is recorded on an integrated SD card which holds up to three years’ information. A USB can be used for downloading daily charts for record keeping and analysis.
All operations of the unit such as temperature, pressure, pump speed, valve position and alarms are recorded on the SD card.
Standard Additional Extras: Prices supplied on enquiry

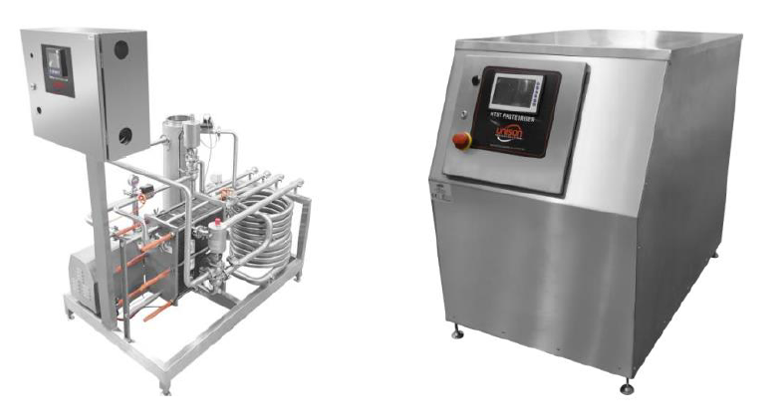

Stainless Steel Enclosure – Optional – As per images above
Dosing Pump – including conductivity sensor and automatic washing programme
V8 – To automatically switch between 2 finished milk tanks and programming for filling and cleaning the tanks.
CIP Pump – For returning CIP from Milk tanks if gravity return is not an option
V3 b – For automatic draining of water from milk supply pipe to finished milk tank
7 inch screen – Larger screen, Standard is 4inch
V7 – Valve and Programme for automatic CIP and Rinsing Control
Separation Take off Point – To integrate a separator with the pasteuriser.
