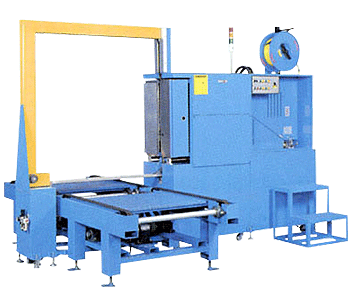

Vertical Palletizing Strapping Machine PW-3864YAO

Carton Sealing Machines > Palletizing Strapping Machine

kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk

Technical Specification

Model BW-3864YAO
Power Supply 3Ø , 220, 380, 415, 440V(50/60HZ)
Strap width 9,12,15,19mmx406Ø(ID)
PET Option 9,12,15,19mmx406Ø(ID)
Tension Max 70kgs(100kgs Optional)
Strapping speed 20sec / strap
(10sec/strap Optional)
(exclude time of conveyor)

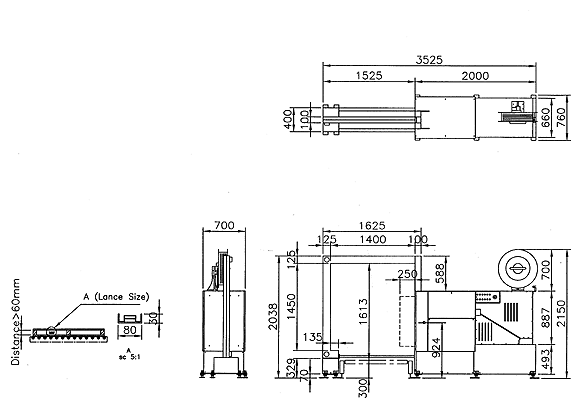

Machine dimensions L3925 x W760 x H2305 mm
Weight 800 Kg
Air 6kgf/cm2

Note: Above Spec. for Reference, Design On Request.
