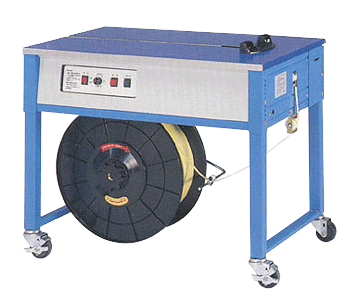

Semi Automatic Strapping Machine, BW-616H
Carton Sealing Machines > Semi Automatic Strapping Machines
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
Features
Standard accessory, its advantage is stable quality, durable material, and easy maintenance.
Special design-Control PP strap cooling time. It can make the PP strap to fasten well in any time.
"Electricity-saving" device, the motor automatically stops running after 60 seconds pause to reduce the regular mechanical wear and to prolong the machine's life.
The advanced P.C.B microchip circuit board control system, less malfunction and easy maintenance.
Durable electro-magnetic clutch transmission means lesser mechanical wear and noise pollution.
New heater plate design improves warm-up-time, weiding speed and increase work efficiency.
Installing an auxiliary feed switch and cut switch at the control panel makes you operate more conveniently.
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk

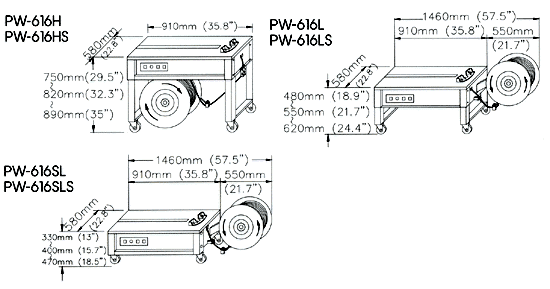

Height can be adjusted. Each hole is 14 mm, one section. If locked 2 screws, can increase the height 70mm. If lock 1 screw, can increase the height 140mm.
If the machine is with outside tension, then the model number is
PW-616HS, PW-616LS, PW-616SLS
(For PW-616H only)
Standard dispenser inside dia. is 200mm.
If need dia. 230 or 280mm, the inner plates required.
Legs and dispensers are disassembled to save transportation costs. 3 units packed in one pallet. 126 units loaded in a 20' feet container.
Technical Specification
| Model | BW-616H | BW-616L | BW-616SL |
| Power Supply | 1 Ø AC110,220V(50,60Hz), 1/4HP |
||
| Strap width | 6,9,12,15(mm),(adjustable) | ||
| Tension | 15 - 50kgs | ||
| Strapping speed | 2.0 sec/strap | ||
| Max. package size | 60mm | ||
| Min. package size | Any size | ||
| Machine dimensions | 910x580x750 | 1460x580x480 | 1460x580x330 |
| Weight | 100 KG | 90 Kg | 80 KG |
| Packing size (LxWxH) mm | 956x626x914 | Machine: 956x626x992 Dispenser:956x626x595 |
Machine: 956x626x746 Dispenser:956x626x443 |
Note: Specifications are subject to change without notice.
