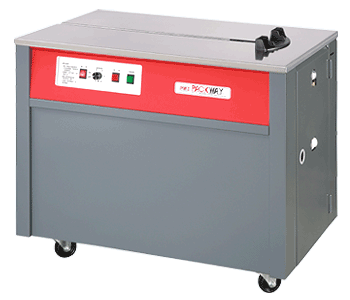

Semi Automatic Strapping Machine, BW-316H
Carton Sealing Machines > Semi Automatic Strapping Machines
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
Features
Standard accessory, its advantage is stable quality, durable material, and easy maintenance.
Special design-Control PP strap cooling time. It can make the PP strap to fasten well in any time.
"Electricity-saving" device, the motor automatically stops running after 60 seconds pause to reduce the regular mechanical wear and to prolong the machine's life.
The advanced P.C.B microchip circuit board control system, less malfunction and easy maintenance.
Durable electro-magnetic clutch transmission means lesser mechanical wear and noise pollution.
New heater plate design improves warm-up-time, weiding speed and increase work efficiency.
Installing an auxiliary feed switch and cut switch at the control panel makes you operate more conveniently.
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
Options:
If the machine is with outside tension, then the model number is
PW-316HS, PW-316LS, PW-316SLS.
Technical Specification
| Model | BW-316H | BW-316L | BW-316SL |
| Power Supply | 1 Ø AC110,220V(50,60Hz), 1/4HP |
||
| Strap width | 6,9,12,15(mm),(adjustable) | ||
| Tension | 15 - 50kgs | ||
| Strapping speed | 2.0 sec/strap | ||
| Max. package size | 60mm | ||
| Min. package size | Any size | ||

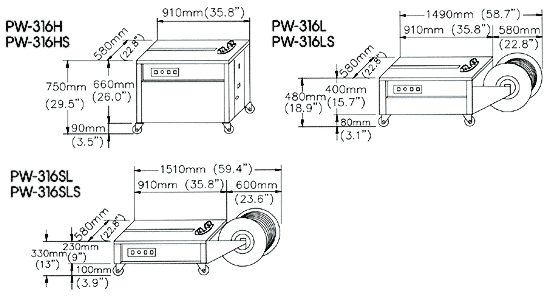

| Machine dimensions | 910x580x750 | 1490x580x480 | 1510x580x330 |
| Weight | 100 KG | 90 Kg | 80 KG |
| Packing size (LxWxH) mm | 956x626x842 | 956x626x592 | Machine: 956x626x746 Dispenser:956x626x443 |
Note: Specifications are subject to change without notice.
