Semi-Auto Auger Filling Machine
Sales team

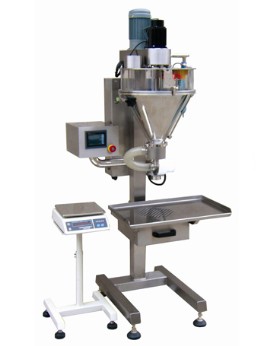

GL-1A1 Small dose filling machine (1-500g)
This type is with the functions of measuring, filling and Weight tolerance alarm. It�s designed according the GMP standard.
Metering method: auger rotation filling with weighing feedback tracking function.
Packing weight: 0.2� 100G (The screw attachment is to be changed)
Weighing range: 0.1�200G (Resolution is 0.1g)
Filling Accuracy: =�2%
Filling Rate: 10�100bags/min
Power supply:3P/380V(1P/220V according your requirement) 50�60Hz
Total power: 0.5KW.
Total weight: 70KG
Overall Dimensions: 630�570�1000 MM
Hopper volume: 10L

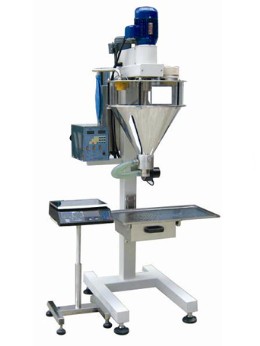

GL-1A2 Small dose filling machine (1-500g)
This type is with the functions of measuring, filling and Weight tolerance alarm. It�s designed according the GMP standard.
Metering Mode:: auger rotation filling with weighing feedback tracking function.
Packing weight: 0.2� 500G (The screw attachment is to be changed)
Weighing range: 0.2�800G (Resolution is 0.1g)
Filling Accuracy: =�0.3 - 1%
Filling Rate: 15�60bags/min
Power supply:3P/380V(1P/220V according your requirement) 50�60Hz
Total power: 0.85KW.
Total weight: 150KG
Overall Dimensions: 650�750�1800MM
Hopper volume: 18L

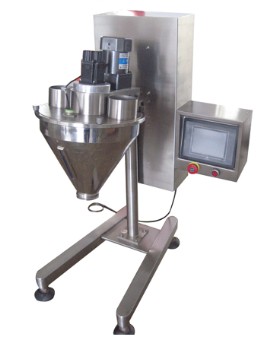

GL-1A3 Small dose filling machine (1-500g)
This type is with the functions of measuring, filling and Weight tolerance alarm. It�s designed according the GMP standard.
Metering Mode:: Auger rotation filling traced by weighing feedback .
Packing weight: 1� 500G (The screw attachment is to be changed)
Weighing range: 1�600G (Resolution is 1g)
Filling Accuracy: Package weight = 100g,with an error=�0.5-1g
Package weight >100g,with an error=�0.3-1%
Filling Rate: 20�60bags/min
Power supply:3P/380V(1P/220V according your requirement) 50�60Hz
Total power: 1.1KW.
Total weight: 150KG
Overall Dimensions: 800�700�1900MM
Hopper volume: 26L

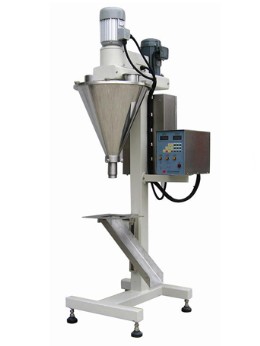

GL-1B2
This type is with the functions of measuring, filling and Weight tolerance alarm. It�s designed according the GMP standard.
Metering Mode: Auger rotation filling traced by weighing feedback
Packing weight: 10� 5000G (The screw attachment is to be changed)
Weighing range: 1�6000G (Resolution is 1g)
Filling Accuracy: Package weight = 100g,with an error=�1g
Package weight:100~1000g,with an error=�1%
Package weight>1000g,with an error=�0.5%
Filling Rate: 10�45bags/min
Power supply:3P/380V(1P/220V according your requirement) 50�60Hz
Total power: 850W.
Total weight: 260KG
Overall Dimensions: 1000�1275�2200MM
Hopper volume: 50L

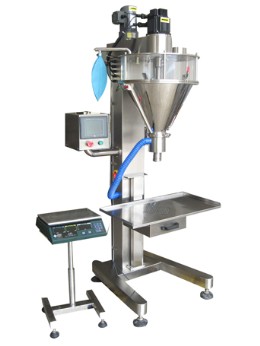

GL-1B3
This type is with the functions of measuring, filling and Weight tolerance alarm. It�s designed according the GMP standard.
Metering Mode: Auger rotation filling traced by weighing feedback
Packing weight: 10� 5000G (The screw attachment is to be changed)
Weighing range: 1�6000G (Resolution is 01g)
Filling Accuracy: Package weight = 100g,with an error=�0.5-1g
Package weight :100~1000g,with an error=�0.3-1%
Package weight >1000g,with an error=�0.25-0.5%
Filling Rate: 10�50bags/min
Power supply:3P/380V(1P/220V according your requirement) 50�60Hz
Total power: 1.3KW.
Total weight: 260KG
Overall Dimensions: 800�1200�2150MM
Hopper volume: 50L
