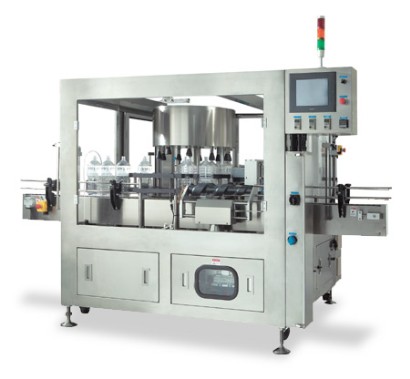

Roll-Fed Labeling Machine LB 103
Filling Machines > Automatic > Labelling Machines
- Machine meets CE standards.
- Machine meets GMP standards.
- Modular design, replace changing parts easily and swiftly.
- Mitsubishi PLC combined with 10" color monitor human / machine interface LCD touch screen controller.
- Machine can apply for handling round / square / hexagon containers.
- Main construction fame made by iron inside and stainless steel outside, including water-proof protection.
- Labeling head is driven by YASKAWA servo motor and driver ( Japan made ) .
- Nordson brand hotmelter ( USA made ) .
- Single straight conveyor design � Saving cost and saving space.
- Double reel holder � High performance based on virtually continuous operation.
- Control cabinet integrated in the machine housing � Space saving design.
- Minimize consumption � Label coated only the leading and trailing edges of the label.
Specification
| Model | LB 103 |
| Output Speed | 150 ~ 600bpm ( Bottle Per Minute ) |
| Size of Bottle (mm) | H: 150 ~ 350mm, ID: 50 ~ 150mm |
| Size of Label (mm) | H: 30 ~ 150mm, L: 30 ~ 350mm |
| Diameter of label roll (mm) | ID: 150 ~ 500mm |
| Accuracy (mm) | � 2mm ( Depends On Bottle Shape ) |
| Power Supply | 220V, 50 / 60Hz, 3 phase |
| Air Consumption | 0.4L / Min |
| Power Consumption | 3.8Kw |
| Machine Dimensions LxWxH | 3000 x 2100 x 1800 mm |
| Machine Weight | 2000 Kg |
