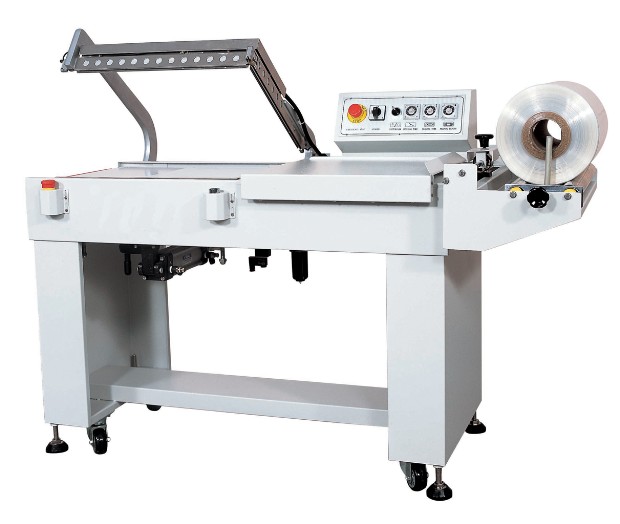

Pneumatic L Bar Sealer GPK 5545TB
Shrink Wrapper and Heat Tunnel > Semi Automatic Pneumatic L Bar Sealer
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
Technical features
- High temperature and sticky free L bar sealing knife, sealing action is smoke & burn free, the sealed parts are tidy and clean.
- Teflon on the sealing knife.
- After sealing, the packaged product goes into the shrink tunnel automatically by the conveyor belt.
- Conveyor belt speed is adjustable.
- Sealing time is controlled accurately by time delay.
- Adjustable film layer with needle device, it is able to fit different size film, max 550mm
- The whole sealing action is controlled by cylinder automatically, with fast packing speed.
- Fitted with double start button for safety precaution to keep hands away from the sealing area.
- Safety protection device is set on the sealer, in case hands get in the way of the sealing knife.
- Emergency button to stop machine immediately for dangerous situations.
- Suitable for PVC, POF, PP film's using.
Technical Specification
| Model | GPK-5545T |
| Machine dimensions LxWxH (mm) | 1560×725×1040 |
| Machine packing size LxWxH (mm) | 450×400×250 |
| Machine sealing size LxWxH (mm) | 550x450 |
| Packing speed (pcs/h) | 800-1200 |
| Netweight (kg) | 135 |
| Power (kw) | 1.2 |
| Power supply | single phase 110V/220V 50/60Hz |
| Air pressure | 6-8 |
Technical Specification (for larger packages)
| Model | GPK-7555TB |
| Machine dimensions LxWxH (mm) | 1800×855×1040 |
| Machine packing size LxWxH (mm) | 700×500×250 |
| Machine sealing size LxWxH (mm) | 750X550 |
| Packing speed (pcs/h) | 800-1200 |
| Netweight (kg) | 165 |
| Power (kw) | 1.5 |
| Power supply | single phase 110V/220V 50/60Hz |
| Air pressure | 6-8 |
