Pallet Stretch Wrapping Machine BW-1521B
Carton Sealing Machines > Stretch Wrappers
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
Product Description
Features
Economic type, simple control panel and easy to operate, column knock down and easy to install back.
LED display and control system, turntable soft start and stop, adjustable upper and lower counter , speed control knobs to control turntable and film carriage.
Utilizes PCB board control, equipped with professional modular design.
Turntable and film carriage all with overload protection in order to avoid motor burnt out.
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk

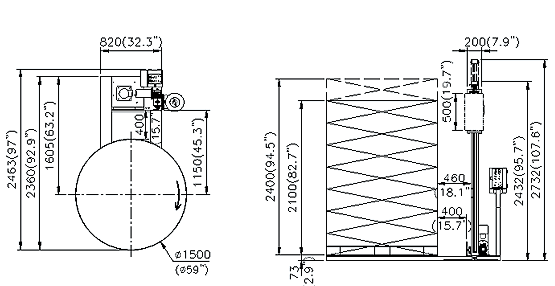

Technical Specification
| Model | BW-1521B |
| Turntable diameter | 1500mm |
| Wrapping height (including pallet) |
2100mm |
| Pallet weight | 1200kgs |
| Power supply | Single phase 110V, 220V, 240V (50, 60Hz) |
| Power consumption | Turntable motor 1/2HP Film carriage motor 1/4HP |
| Film carriage system | Mechanical Brake |
| Turntable speed | 0~10 RPM (Adjustable) |
| Film carriage speed | 5M/per min. (Adjustable) |
| Film spec | Film reel core dia.: 76mm Film reel outside dia.: Max. 350 mm Width: 500mm |
| Film thickness | 17 - 35 microns |
| Packing size | L2468xW1578xH770 (wooden crate) |
Note: Specifications subject to change without notice.
