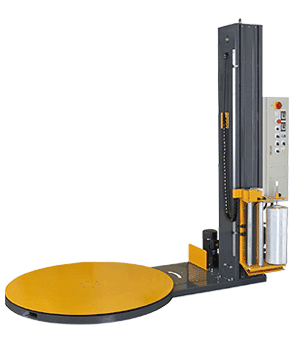

Pallet Stretch Wrapping Machine BW-1521
Carton Sealing Machines > Stretch Wrappers
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
Product Description
Features
Utilizes PLC control, equipped with standard organization of professional design.
A frequency inverter controls the speed of the motor, so that the film wrapping and rotational speed can be perfectly matched.
The film carriage is equipped with chain drive, for smooth vertical movement. Speed is adjustable.
Turntable is is equipped with chain drive, for stable turning during pallet loading. Speed is adjustable.
When moving, the pillar can be directly put down. Don't need to take apart the film carriage. This saves time and prevents negligence when reinstalling.
Manual or auto mode of operation.
Soft start / stop and wrap smoothly so the machine life is long.
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
Options:
Power pre-stretch system, PW-1521P
(150%, 200%, 250%, 300%) (Fig-1)
Top press platen, PW-1521 + P (Fig-2)
Access ramp.
Middle Re-enforcing Wrapping
Fig 1
Fig 2
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk

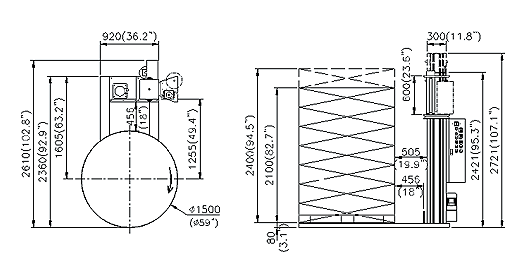

Technical Specification
| Model | BW-1521 |
| Turntable diameter | 1500mm |
| Wrapping height (including pallet) |
2100mm |
| Pallet weight | 1500kgs (Max. 2000kgs) |
| Power supply | 3Ø , 220, 380, 415, 440V(50/60HZ) 1Ø , 110, 220V(50/60HZ) |
| Power consumption | Electrical magnetic brake 1.3KW Turntable motor 1 HP Film carriage motor 1/2HP |
| Power consumption | Power Pre-stretch system 1.7KW Turntable motor 1 HP Film carriage motor 1/2 HP Pre-stretch motor 1/2HP |
| Film carriage system | Electrical magnetic brake (Adjustable) Option: Power pre-stretch system |
| Turntable speed | 0 - 5 RPM (Adjustable) |
| Film carriage speed | 5M/per min. (Adjustable) |
| Film spec | Film reel core dia.: 76mm Film reel outside dia.: Max. 350 mm Width: 500mm |
| Film thickness | 17 - 35 microns |
| Packing size | L2838 x W1636 x H950 mm (wooden crate) |
Note: Specifications subject to change without notice.
