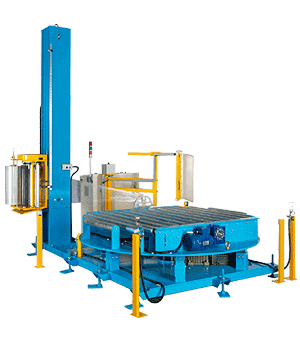

Pallet Stretch Wrapping Machine BW-1223ARD
Carton Sealing Machines > Stretch Wrappers
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
Features
Fully-auto wrapping, clip film, cut film and brush system.
Sensors can automatically detect the packsge height.
Tension can be adjusted.
Turntable with electro-magnetic roller conveyer.
Top and bottom wrapping 1~4 circles.
Up and down speed for pillar can be adjusted feom 0~5M/min.
Choose wrapping or non-wrapping.
PLC control (Mitsubishi made)
Detection for wrapping failure.
Detection for broken film.
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
Options:
Safety fence
Power pre-stretch system
Top press plate device
Top film cover placing device
Package move out by turning 90 degrees
Other specification can be made by requested
Position sensors
Safety sensor devices
Display Damage codes
Front and back limits sensors
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk

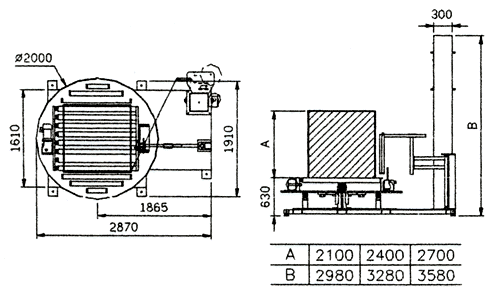

Technical Specification
| Model | BW-1223ARD |
| Power supply | 3 Ø 220, 380, 415, 440V(50/60Hz) |
| Wrapping height | 2100mm |
| Turntable dia | 2000 |
| Wrapping size | L1400xW1200mm |
| Loading weight | 2000kgs |
| Turntable speed | 0~15RPM (Adjustable) |
| Power consumption | 3.75kw |
| Capacity | 20~40 pallets/Hr |
| Air pressure supply | 6 bar |
| Air pressure consumption | 15NL/min |
| Film width | 500m/m, 750m/m(optional) |
| Film thickness | 20~35 microns |
| Film outside diameter | Below 350mm |
| Film reel core diameter | 76mm |
| Cut film type | Heat-type, Blade-type (optional) |
| Conveyor height | Min 630m/m |
| Conveyor speed | 8M/min |
| Machine size | L2845xW2000xH3300mm |
| Machine weight | 1900kg |
Note: Specifications subject to change without notice.
