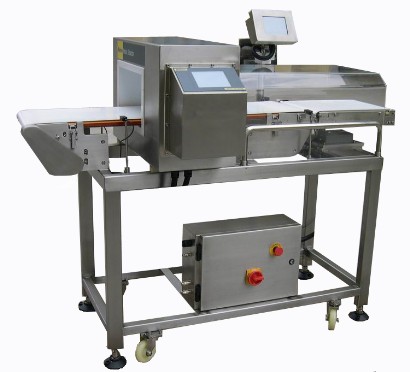

Metal Detector, Check Weigher Combo
Check Weighers
Product Description
Features
- Based on High speed 32bit CPU control circuit.
- LCD with Touch Screen, Easy to operation.
- Multi-Functional OS and dual-language.
- DSP Technology and digital signal filter.
- 100 products memory.
- 1000 detection logs.
- Multiple setup for peripheral connectiion.
- Frequency optional.
- Printer connection and signal analyze software.
- Separated DSP module and control unit.
- Automatical rejection module.
- Multi-functional stainless steel frame.
Scope of application
Designed for food industrial and Pharmaceutical industrial use.
Also can fit for detecting the chemical products, rubber products.
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
Rejector
............
...........
.......... Air Jet.....................................................Pusher Type..................................................Falling Drop
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
Main Menu
Detecting Interface
Technical Specification
| Model | MGP-D |
| Theory | Balanced Coil |
| Adjustment | Auto and Manual |
| Alarm | Buzzer & Lamp |
| Belt Speed | Max.18-32m/min |
| Power Supply | AC110V/220V 50-60Hz |
| Rated Output | Appr.200W |
Technical Specification Check Weigher
| Model | GP-160HS |
| Measurement | Strain Guage |
| Regection | Air Jet/Flapper/Falling Drop |
| Operation | Touch Screen |
| Alarm | Buzzer & Lamp |
| Belt Speed | Max.60m/min |
| Power Supply | AC110V/220V 50-60Hz |
| Rated Output | Appr.100W |
| Dimension | (L)*520mm(W)*1350+/-100mm(H) |
| Weight | 97 Kg |
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
| Height | Detection Sensibility |
| 400mm - 100mm | Fe˘0.7mm SUS˘1.2mm |
| 400mm - 120mm | Fe˘0.8mm SUS˘1.5mm |
| 400mm - 150mm | Fe˘1.0mm SUS˘1.8mm |
| 400mm - 200mm | Fe˘1.5mm SUS˘2.5mm |
| Weighing Range |
Sorting Speed | Accuracy |
| 5 - 200g | Max.120bags/min | +/- 0.2g |
