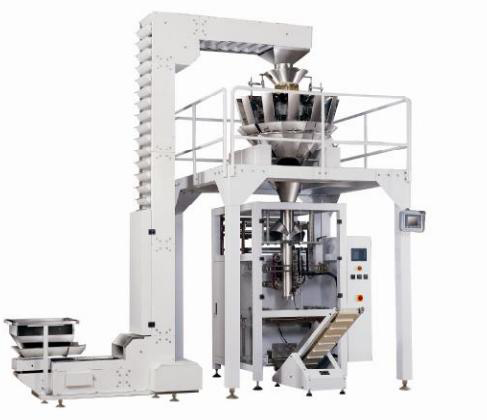

GP- 5240 Vertical full-automation packaging machine
Vertical Packing Machines
Specification
| Model | GP-5240 |
| Bag lenth | 80-400mm(L) |
| Bag width | 80-250mm(W) |
| Max width of roll film | 520mm |
| Packing speed | 5 - 50 bags/min |
| Measuring range | 3000ml (max) |
| Air consumption | 0.65Mpa |
| Gas consumption | 0.4m³/min |
| Power voltage | 220VAC/50HZ |
| Dimension | 1150×1795×11650mm (L×W×H) |
| Weight | 600Kg |
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
Applicable scope:
Suitable for packaging of granular, powder, flake, strip, such as potato chips, shrimp, jelly, peanut, etc upto 3Kg products.
Technical characteristics:
Color screen and biaxial precision output of PLC control, measuring, filling, sealing, code, bag making one-time finish.
Pneumatic control circuit, smooth and low noise production.
Vacuum belt tension membrane resistance for accurate and good shaped bags, the leather belt is more appealing.
Double servo control creating high precision positioning and accuracy.
Outer membrane simple and easy tio install.
Using electronic quantity multi head weigher for better accuracy.
