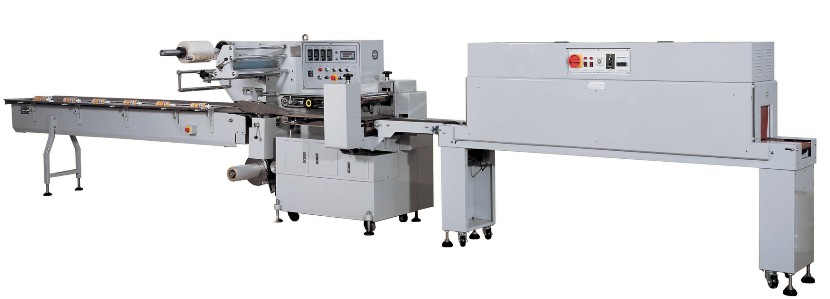

GP-850 Flow wrapper with heat shrink tunnel

Horizontal Packaging Machines

kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk

Scope of Application

Suitable of heat shrink of cupped snacks,
bottled juice, toothpaste, tissues etc.


Features

Technical features

Imported PLC control.

AC motor attached with converter for a step-less control, dynamic adjustment in operation.

New type vertical seal heating can seal at a low-temperature and avoid burning film effectively.

Effective dual-temperature area for shrinker, controlling temperature automatically.

Circulation of hot air, ensuring the quality of shrinking.

Strongly recommended:
This is a full automatic shrink wrapping machine with special design for flowing operation and volume-production. To carry out automatic feeding unmanned by optional feeder according to the dimension of products. It adopts full closing wrapping and continue performance,the seal runs straight and at high speeds.



Technical Specification

Model GP 850
Bag size L:90-400 W:10-150 H:5-40
Max film width/tunnel size L×W×H(mm) 450
Packing speed per minute 50 - 150
Dimensions LxWxH mm 500x965x1750
Total Power 3.5kw
Switch and total power 380V 50HZ
