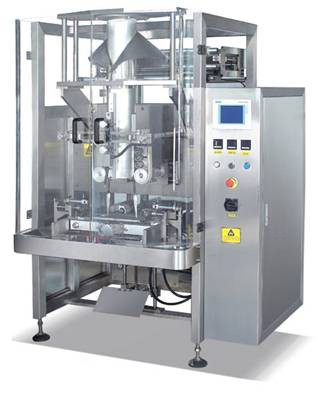

GP-620 & GP730 Packaging Machine

Vertical Packing Machines > Vertical Packing Machines

Technical characteristics:

1. Double servo motors for film drawing down system
2. Automatic film rectifying deviation function
3. PLC. Pneumatic system for vertical and horizontal sealing
4. Compatible with different internal and external measuring devices


Application
Suitable for packing granule , powder, strip shape materials, such as puffed foods, peanuts, nuts, popcorn, sugar, salt, seeds, etc


kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk

Specification

Model GP-620 GP-730
Capacity Max 50bags/min Max 45bags/min
Bag size Width:100-300mm
Length:100-390mm
Width:140-350mm
Length:100-450mm
Max film width Max 620mm Max 730mm
Film thickness 0.04-0.09mm 0.06-0.12mm
Power source 4.0KW 220V 50HZ 4.0KW 220V 50HZ
Air consumption 0.8Mpa 0.6m3/min 0.8Mpa 0.8m3/min
Weight 800kg 900kg
