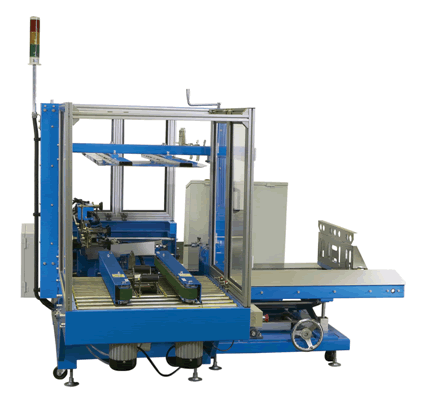

GP-568ERT Carton Sealing Machine
Carton Sealing Machines
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
Product Description
Features
Carton erector automatically form and bottom seal different styles and sizes of cartons. After that is perfectly-form empty cartons that are ready to be filled and can integrate any carton sealers to seal top flaps. So form, pack and seal carton is all in one operation.
With low or no tape detector, erecting failure detector, bottom sealing failure detector, low or no cartons at the magazine detector, also equipped with one small LCD digital display to show abnormal conditions. All ensure to show the signal at short time.
Adopt vertical seal and no need the centering guide mechanism.
Easy change & Simple adjustment to increase production efficiency.
Minimum maintenance, durability and run good performance.
New taping head incorporating a V shaped plate (patented) designed to keep the tape straight and in position for consistent sealing of every carton. This design is superior to previous blower devices.
Driven by power side belts, main drive mechanism adopt self-aligning ball bearing bracket providing exact and precise sealing, lower noise and lengthening belt life.
Equipped with double type vacuum sucking arm to erect cartons more firm.
Professional aluminum frame safety fence to provide more safety working environment.
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
Note: * Above spec. For reference only.
Other spec is designed on request
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
Specification
| Model | GP-568ERT |
| Power Supply | single phase,110V,220V (50/60Hz) 3 phase,220V,380V,440V(50/60Hz) Three motors, W |
| Sealing Speed | 10M /per min at 60Hz (L 300 x W 300 x H 300 mm ) |
| Tape width | 2" or 3" |
| Loading Magazine | L 58”-1400 mm 150 pcs (3 ply-7 mm thickness) or 50 pcs (5 ply-15 mm thickness) |
| Working height | 615 mm |
| Cosumption | 460W |
| Max sealing size | L 510 x W 380 x H 500 m |
| Min sealing size | L 250 x W 200 x H 120 mm |
| Cartons/Hr | 1500 cartons per hour |
| Tape Width | 1.5" |
| Shipping Size | L 2740 x W 2278 x H 1880 mm |
| Gross Weight | 1190 kgs |
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
