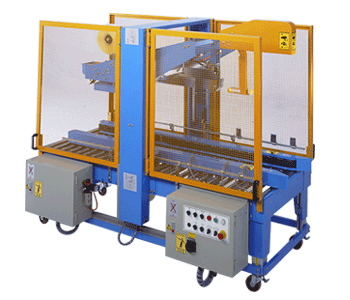

GP-559AF Carton Sealing Machine
Carton Sealing Machines
- New Tapping Head- Patent No. 123859, 145797
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
Product Description
Features
Automatically adjust the carton's width and height and can use different carton size.
Fold the top flaps automatically. Accomplish the operation successfully at one go. Be smooth and save strength. Suit with automation of packaging system.
New tapping head incorporating a V shaped plate (patented) designed to keep the tape straight and in position for consistent seaing of every carton. This design is superior to previous blower devices.
Up & down mechanism adopt import brake cylinder.
Flexible cushion prevents box been jammed urder the top tapping head.
Two sides belt driven, main driven mechanism uses special bearing bracket. its advantage is high precise, low noise to prolong the belt's life.
Tape overlap length can be adjusted, standard from 60 ± 5mm .Tape overlap of 70 ± 5mm or 90 ±5mm can be provided on request.
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
Options:
- Detect for non-OPP tape
- Detect for broken tape
- Detect for sealing failure
- Detect for insufficient pressure
- Safety fence
- Safety switch
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
Error File Open Error
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
Technical Specification
| Model | PW-559AF |
| Power Supply | 3Ø 220V , 380V , 440V (50/60Hz) Two motors, 374W |
| Sealing Speed | 20M/per min |
| Cartons/Hr | 5 cartons per/H |
| Tape Width | 2" or 3" (optional) |
| Shipping Size | L2135 x W1210 x H1725mm (L84" x W47.8" x H67.9") |
| Carton Size | L300~500, W200~500, H160~500mm |
| Machine Size | L2076 x W1139 x H1665~1925mm |
| Gross Weight | 415 kgs |
Note: Specifications subject to change without notice.
Note: No suitable to use this machine if the carton's height exceeds its length.
