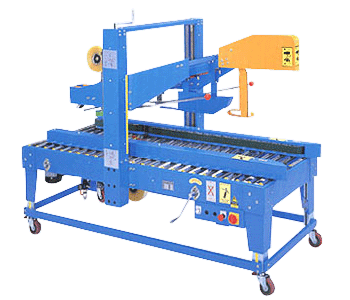

GP-558F Carton Sealing Machine

Carton Sealing Machines

  • New Tapping Head- Patent No. 123859, 145797


  • New Up and Down Mechanism- Patent No. 182493,159450

kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk

Product Description

Features

Fold the top flaps automatically and smooth which makes the carton sealing done in one process. It's durable and suit with automation packaging system.

New taping head incorporating a V shaped plate (patented) designed to keep the tape straight and in position for consistent sealing of every carton. this design is superior to previous blower devices.

Two sides belt driven and the main drivn mechanism uses special bearing bracket. With the advantage of high precise and low noise to prolong belt's life.

Tape overlap length can be adjusted from 55mm to 65mm.(The 70±5 or 95±5mm can be made by requested)

GPK-558F has a total of 4 drive belts, two side drive belts and two top drive belts. Three motors are supplied to drive belts.

The machine has been designed for heavy Cartons and can also seal tall-thin cartons.

kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk

  • Detection of non-OPP tape.


  • Detection of sealing failure


  • Detection of cutting-off failure


  • Auto-stop device.


  • Safety fence.


  • Three-sides folding mechanism.


kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk

kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk

Technical Specification

Power Supply 1 Ø 110V/220V(50/60Hz),
3 Ø 220V/380V(50/60Hz),
Three motors, 555W
Sealing Speed 20M/per min at 60Hz
Cartons/Hr 700 Cartons per hour
(Carton L300xW300xH300 mm)

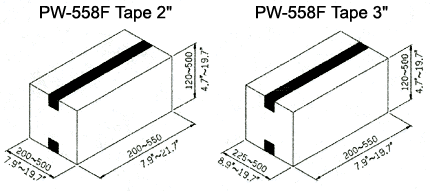

Tape Width 2" or 3" (optional)

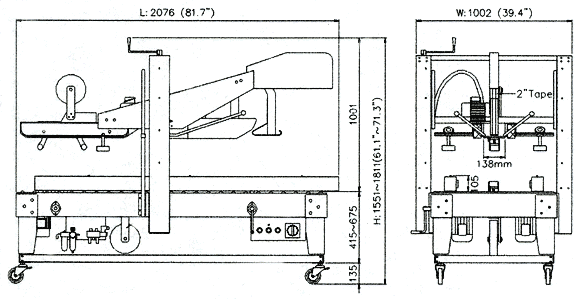

Shipping Size L2135xW1030xH1585mm
L84.1"xW40.6"xH62.4"(inch)
Gross Weight 405 kgs

Note: Specifications subject to change without notice.
Note: No suitable to use this machine if the carton's height exceeds its length.
