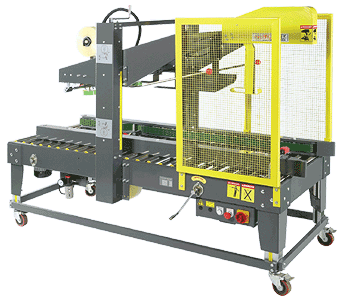

GP-557F Carton Sealing Machine
Carton Sealing Machines
- New Tapping Head- Patent No. 123859, 145797
- New Up and Down Mechanism- Patent No. 182493,159450
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
Product Description
Features
Fold the top flaps automatically and smooth which makes the carton sealing done in one process. It's durable and suit with Automatic Packaging System.
New taping head incorporating a V shaped plate(patented) designed to keep the tape straight and in position for consistent sealing of every carton. this design is superior to previous blower devices.
Driven by two side belts and the main mechanism use omni-bearing bracket. It provides higher precision, lower noise and can prolong machine's life.
Tape overlap length can be adjusted from 55mm to 65mm.(The 70±5 or 95±5mm can be made by requested)
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
Options
- Detection of non-OPP tape.
- Detection of sealing failure
- Detection of cutting-off failure
- Auto-stop device.
- Safety fence.
- Three-sides folding mechanism.
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
Technical Specification
| Power Supply | 1 Ø 110V/220V(50/60Hz), 3 Ø 220V/380V(50/60Hz), Two motors, 370W |
| Sealing Speed | 20M/per min at 60Hz |
| Capacity | 6~11 cartons/ min |
| Tape Width | 2" or 3" (optional) |
| Air | 6kgf/cm2 |

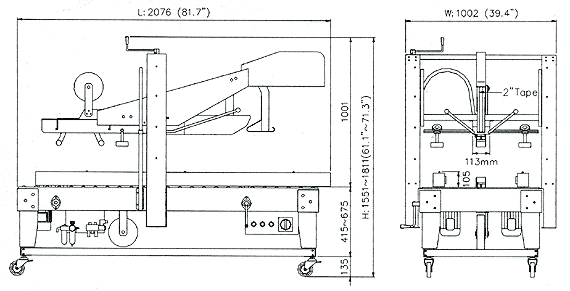

| Machine Size | L2076xW1002xH1551~1811mm |
| Shipping Size | L2135xW1030xH1585mm L84.1"xW40.6"xH62.4"(inch) |
| Gross Weight | 390 kgs |
Note: Specifications subject to change without notice.
Note: If the carton's height exceed its length, it's not suitable to use this machine.
