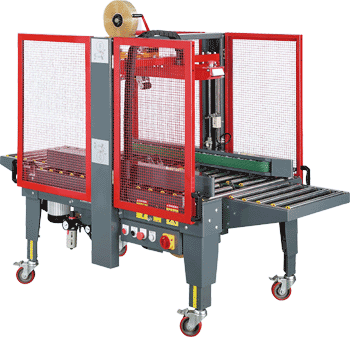

GP-555AD Carton Sealing Machine
Carton Sealing Machines
- New Tapping Head- Patent No. 123859, 145797
- New Up and Down Mechanism- Patent No. 182493,159450
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
Product Description
Features
New tapping head incorporating a V shaped plate (patented) designed to keep the tape straight and in position for consistent sealing of every carton. This design is superior to previous blower devices.
Driven by two side drive belts, each belt has a separate drive mechanism using a special bearing bracket. This provides higher precision, lower noise and lengthens belt life.
Tape overlap length can be adjusted from 55mm-65mm. Tape overlap of 70±5mm and 95±5mm can be provided on request.
GPK-554TS has a total of 4 drive belts, two side drive belts and two top drive belts. Three motors are supplied to drive belts.
The machine has been designed for heavy cartons and can also seal tall-thin cartons.
Flexible cushion prevents jamming of cartons under the top tapping head.
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
- Extension roller table.
- Close type-Table roller or Extension roller table.
- Auto stop device.
- Safety fence.
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
Technical Specification
| Power Supply | 1 Ø 110V/220V(50/60Hz), 3 Ø 220V/380V/440V(50/60Hz), Two motors, 374W |
| sealing Speed | 20M/min at 60 Hz |

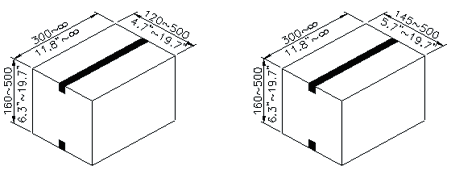

| Capacity | 480 cartons / Hr Carton size: L 300 x W 300 x H 300 mm |
| Tape Width | 2" or 3" |

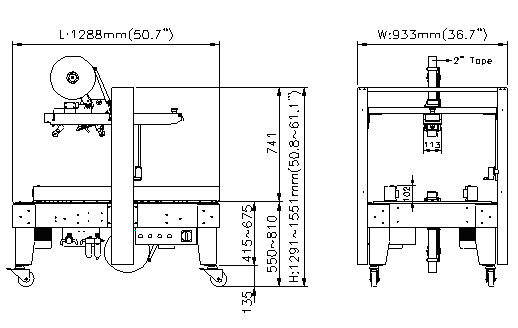

| Machine Size | L 1288 x W 933 x H 1291 ~ 1551 (mm) L 50.71” x W 36.73” x H 50.83” ~ 61.06” (inch) |
| Gross Weight | 250 kgs |
377 Elsicar Street, Kya Sands, Randburg, South Africa / Tel: +27 11 708 6112 - Fax: +27 11 708 6115 / Email: enquiry@glopak.co.za
