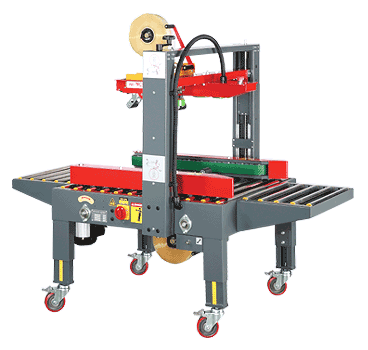

GP-553M Carton Sealing Machine

Carton Sealing Machines

  • New Tapping Head- Patent No. 123859, 145797


  • New Up and Down Mechanism- Patent No. 182493,159450

kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk

Product Description

Features

New tapping head incorporating a V shaped plate (patented) designed to keep the tape straight and in position for consistent sealing of every carton. This design is superior to previous blower devices

Driven by two side drive belts, each belt has a separate drive mechanism using a special bearing bracket.

This provides higher precision, lower noise and lengthens belt life.

Tape overlap length can be adjusted from 55mm-65mm. Tape overlap of 70 ± 5mm and 95 ± 5mm can be provided on request.



kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk

  • Flexible cushion avoids box jammed under top tapping head.

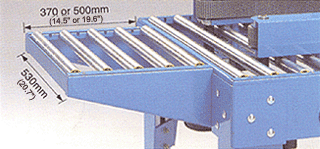

  • Extension Roller table.


  • Close type-table Roller or Extension Roller table.


  • Auto Stop device.


kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk

kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk

Technical Specification

Power Supply 1 Ø 110V/220V,50/60Hz
3Ø 220V,380V,415V,440V(50/60Hz)
Two motors, 370W
sealing Speed 20M/min at 60 Hz
Capacity 1800 cartons / Hr

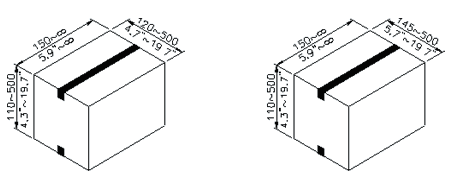

Carton size: L 300 x W 300 x H 300 mm
Tape Width 2" or 3"

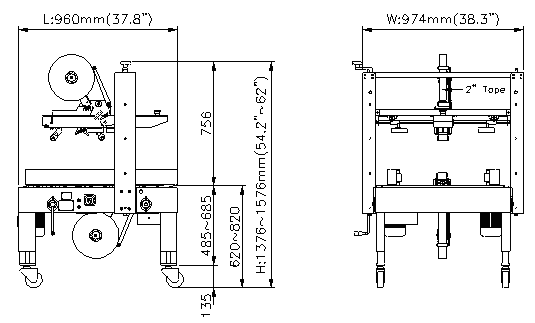

Machine Size L 960 x W 974 x H 1376 ~ 1576 (mm)
L 37.80” x W38.35” x H 54.17” ~ 62.05” (inch
Gross Weight 195 kgs
