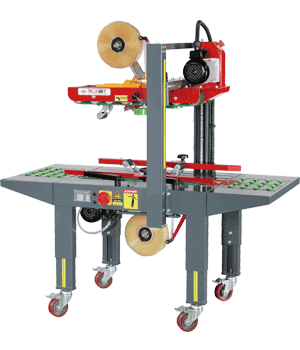

GP-551BE Carton Sealing Machine
Carton Sealing Machines
- New Tapping Head- Patent No. 123859, 145797
- New Up and Down Mechanism- Patent No. 182493,159450
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
Product Description
Features
New tapping head incorporating a V shaped plate (patented) designed to keep the tape straight and in position for consistent sealing of every carton. This design is superior to previous blower devices.
Flexible cushion prevents box been jammed under the top tapping head.
Tape overlap length can be adjusted from 55~65 mm, tape overlap of 70±5 or 90±5mm can be provided on request.
Wider belt-75mm firmly seize the carton, new "linking buckle" design allowing the belt to be changed easily.
Oversized drive rollers guide belt design stops slipping and prolongs belt life.
Aluminum guide machanism allow tape head bracket to move very stable and smooth.
Both side guide rails can be adjusted separately to meet the carton width.
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
- Flexible cushion avoids box jammed under top tapping head.
- Extension roller table
- Auto stop device
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
Technical Specification
| Power Supply | 1 Ø 110V , 220V (50/60Hz) 3Ø 220V,380V,415V,440V(50/60Hz) Two motors, 374W |
| sealing Speed | 20M/min at 60 Hz |

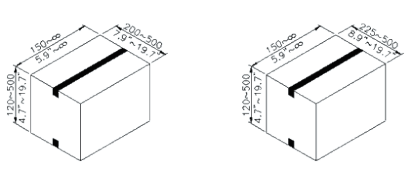

| Capacity | 1800 cartons per Hr Carton size: L 300 x W 300 x H 300 mm |
| Tape Width | 2" or 3" |

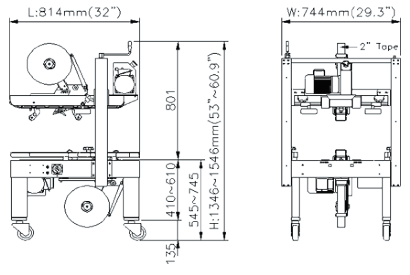

| Machine Size | L 870 x W 800 x H 1270 (mm) L 33.86” x W 31.50” x H 50” (inch) |
| Gross Weight | 148 kgs |
