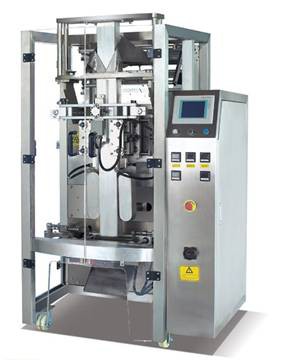

GP-520B Packaging Machine

Vertical Packing Machines > Vertical Packing Machines

Technical characteristics:

1. Double servo motors for film drawing down system
2. Automatic film rectifying deviation function
3. PLC. Pneumatic system for vertical and horizontal sealing
4. Compatible with different internal and external measuring devices


Application
Suitable for packing granule , powder, strip shape materials, such as puffed foods, peanuts, nuts, popcorn, sugar, salt, seeds, etc


kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk

Specification

Model GP-520B
Capacity Max 50bags/min
Bag size Front Width:100-160mm
Side Length:50-80mm
Width of side seal:5-10mm
Length: 100-350mm

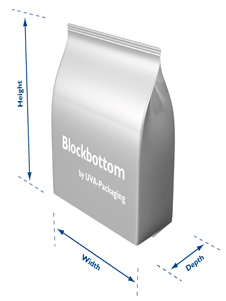

Bag type Block bottom
Film width Max 520mm
Power supply 220V 3.5KW 50HZ
Air consumption 0.8Mpa 0.6m3/min
Weight 750kg
