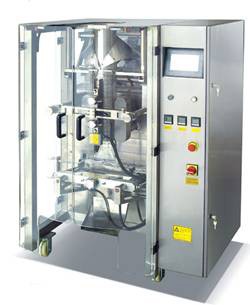

GP-520 & GP520H Packaging Machine
Vertical Packing Machines > Vertical Packing Machines
Technical characteristics:
1. Film drawing down system controlled by servo motor
2. Automatic film rectifying deviation function
3. Various alarm system to reduce wast
4.It can complete feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, finished product delivery when it equips with feeding and measuring equipment
Application
Suitable for packing granule , powder, strip shape materials, such as puffed foods, peanuts, nuts, popcorn, sugar, salt, seeds, etc
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
Specification
| Model | GP-520 | GP-520H |
| Capacity | Max 60bags/min | Max 85bags/min |
| Bag size | Width:80-350mm Length:100-250mm |
Width:80-350mm Length:80-250mm |
| Max film width | Max 520mm | Max 520mm |
| Film thickness | 0.04-0.09mm | 0.06-0.12mm |
| Filling range | 150-2000ml | 150-2000ml |
| Power source | 2.5KW 220V 50HZ | 3.5KW 220V 50HZ |
| Air consumption | 0.8Mpa 0.4m3/min | 0.8Mpa 0.4m3/min |
| Weight | 680kg | 700kg |
