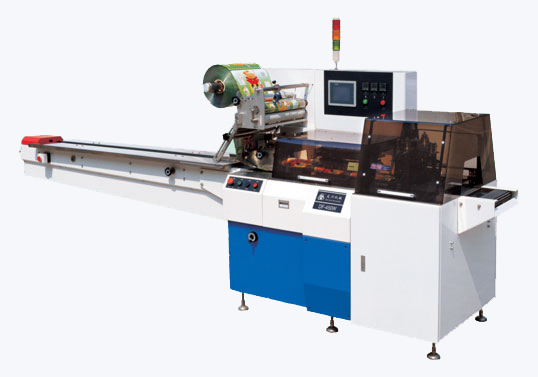

GP-450W Double transducer control packing machine
Horizontal Packaging Machines
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
Product Description
Trinal frequency conversion control, bag length can be set and cut in one step, no empty bag, saves time and film.
Interface features easy and quick setting and operation 2.5.7 inch colour touching screen easy to control
Self failure diagnosis, clear failure display.
High sensitivity photoelectric eye colour tracing numerical input of cutting/sealing position for extra accuracy.
Positioned stop function without material sticking on the knife or wasting film.
Temperature independent PID control, more suitable for packaging different materials.
Simple driving system, reliable working, convenient maintenance.
All controls via software for easier for functionality, adjusting and technical upgrade.
Scope of application
Packaging various kinds of regular objects like biscuit, pies, chocolate, bread, instant noodles, moon cakes, drug, daily appliances, industrial parts boxes, plats, etc.
Technical Specification
| Max width of packing film | 320mm |
| Bag size | L(65-350)*W(50-160)*H(10-60)mm |
| Max outer diameter | <300mm |
| Packing film thickness | 0.04-0.07mm |
| Packing speed | 20-180 bag/min |
| Total power voltage | 3.2KW/220VAC |
| Power | 2.75 kw |
| Size (lxWxH) | (L)3980*(W)860*(H)1580 |
| Weight | 660 Kg |
| Optional collocate | Printer,Gas Charging device,Feeder,Tidier |
