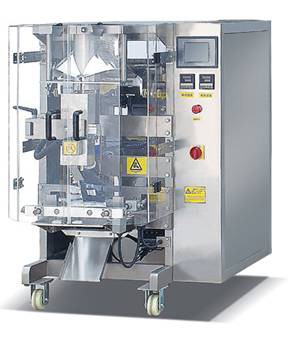

GP-420, GP-420D & GP-420H Packaging Machine

Vertical Packing Machines > Vertical Packing Machines

Technical characteristics:

1. Low cost high gain, high speed and efficiency.
2. PLC control system, large touch screen, convenient to operate;
3. Film drawing down system and horizontal sealing controlled by servo motor;
4. Minimize the loss with complete automatic warn protection function;
5. It can complete feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, finished product delivery when it equips with feeding and measuring equipment.


Application

Suitable to pack granule, powder, solid state materials, such as coffee, potato chips, puffey food, peanut, nuts, popcorns, salt, sugar, tea, seeds, etc

kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk

Specification

Model GP-420 GP-420D GP-420H
Capacity Max 70bags/min Max 70bags/min Max 99bags/min
Bag size Width:60-300mm
Length:60-200mm
Width:60-300mm
Length:60-200mm
Width:60-300mm
Length:80-200mm
Max film width Max 420mm Max 420mm Max 420mm
Film thickness 0.04-0.09mm 0.04-0.09mm 0.04-0.09mm
Pulling belt type One belt Double belt Double belt
Power source 2.2KW 220V 50HZ 3.5KW 220V 50HZ 3.5KW 220V 50HZ
Air consumption 0.8Mpa 0.5m3/min 0.8Mpa 0.5m3/min 0.8Mpa 0.5m3/min
Weight 450kg 480kg 500kg
