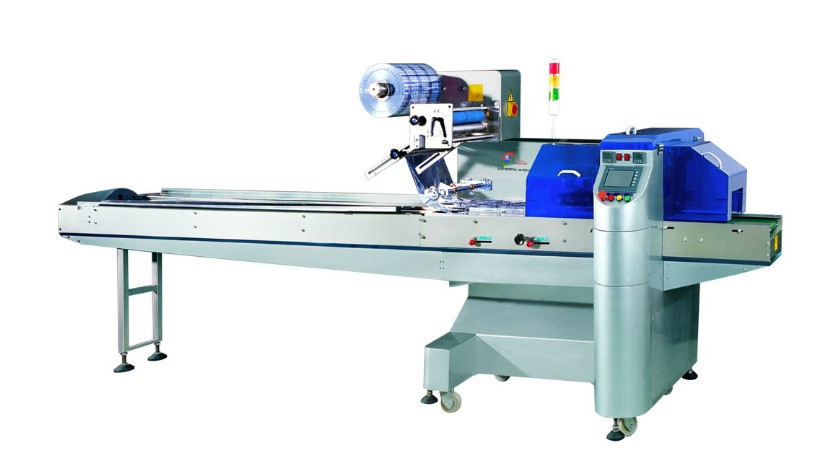

GP-380i Horizontal packaging machine
Horizontal Packaging Machines
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
Product Description
Features
Double transducer control, flexible bag length cutting, operator needn’t adjust the unloading saving time and material.
Touchable human-machine operation for convenient and quick parameter setting.
Self diagnosis failure function, clear failure display.
High sensitivity optical electric colour mark tracking and digital input cut position
which makes the sealing and cutting more accurate.
Separate PID control to temperature, suitable for various packing materials.
Recuperating type sealing device for firmer sealing no wastage in mould sealing cutter.
Terminal sealing device for an attractive bag shape, improving product levels.
Stopping the machine in selected position creates no material sticking to the knife and no wastage of packing materail.
Simple driving system, reliable working, convenient maintenance.
All the controls via software, convenient for function adjusting and upgrading.
Scope of application
Packaging various kinds of regular objects like biscuit, pies, chocolate,bread,instant noodles,
moon cakes, drug, daily appliances, industrial parts boxes, plats, etc.
Technical Specification
| Max width of packing film | 320mm |
| Bag size | L(65-350)*W(50-160)*H(10-60)mm |
| Max outer diameter | <300mm |
| Packing film thickness | 0.04-0.07mm |
| Packing speed | 20-180 bag/min |
| Total power voltage | 3.2KW/220VAC |
| Power | 2.75 kw |
| Size (lxWxH) | (L)3980*(W)860*(H)1580 |
| Weight | 660 Kg |
| Optional collocate | Printer,Gas Charging device,Feeder,Tidier |
